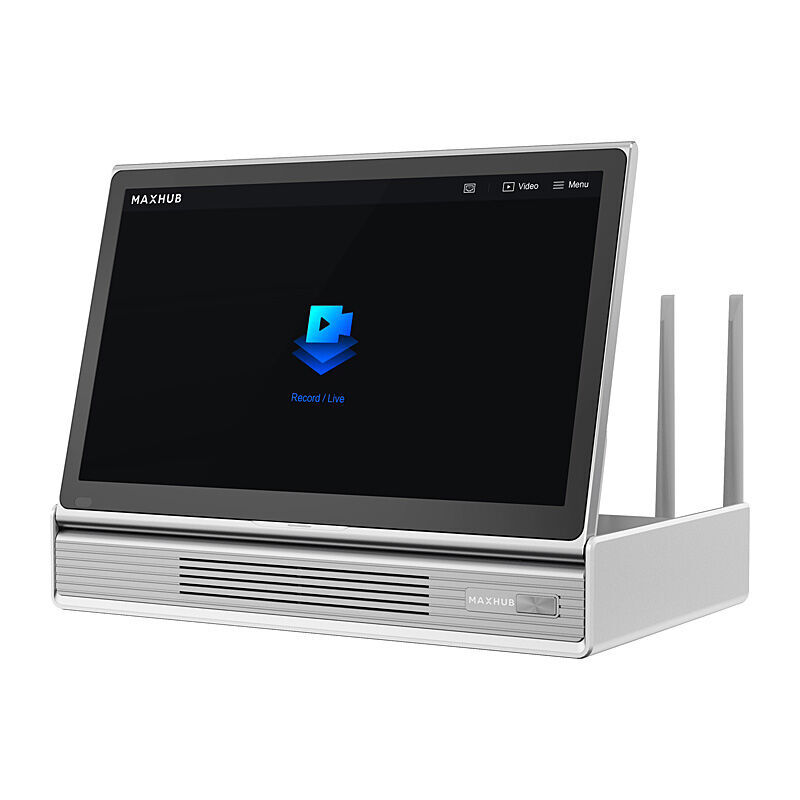

MAXHUB Mobile Capture Host

MAXHUB Mobile Capture Host

Features

• Intuitive Touch Control: Manage your cameras and switch scenes with ease.  Responsive touchscreen interface for greater operational efficiency
• Wireless Deployment: Flexible setup without complex cabling
• Extended Battery Endurance: Enjoy up to 6 hours of continuous use. Automatic overheat protection for peace of mind during long sessions
• High-Reliability Storage: Featuring durable SSD storage. Withstands frequent movement and rough handling to keep your data safe and sound

Specifications

Display

• Operating System: Linux
• Diagonal Size (inch): 15.6
• Brightness: 250 nits
• Resolution: 1920 — 1080
• Backlight Unit: ELED
• Color Gamut: 72% NTSC
• Viewing Angle: > 170°
• Refresh Rate: 60 Hz
• Mean Time Between Failures (MTBF): ? 250,000 Hours
• Glass: 7H Tempered
• Screen Type: Capacitive touch screen
• Touch Point: 10 Points touch

System

• CPU: A76—4 + A55—4
• GPU: Mali-G610 MP4
• NPU: 6 TOPs
• RAM: 8GB
• Storage: 512GB SSD

Video I/O Port

• Video Recording Resolution: 4K@30fps, 1080p, 720p, VGA, QVGA
• Video Recording Frame Rate: 60fps/ 30fps/ 25fps
• Video Recording Format: MP4
• Multi-Channel Recording: Up to 7 channels
• Live Streaming Channel: Up to 3 RTMP channels, 1080p
• Live Streaming Resolution: 1080p, 720p, VGA, QVGA

Ports

• DC In —1
• RJ45 —5 (one for Internet, one for Mic in, three for PoE)
• HDMI Out —3
• HDMI In (HDMI 1.4) —2
• USB-A 3.0 —2
• USB Type-C —1
• RS422 —1
• Mic In —1
• Line In —1
• Line Out —2
• Power Button —1

Wireless Connection

• Frequency: 2.4GHz, 5GHz, 5.8GHz
• Wi-Fi: 802.11ac/b/g/n/a/ax (Wi-Fi 6 supported)
• Bluetooth: 5.2

Electrical Parameters

• Power Adapter: 100-240~50/60HZ 2.0A Max
• Power Supply: DC 24V 4.0A
• Power Consumption (Max): 60W
• Power Consumption (Standby): 0.5W

Physical Parameters

• Dimension (Raised Position, L — W — D): 385.2 — 255 — 290.8 mm
• Dimension (Lowered Position, L — W — D): 385.2 — 255 — 70 mm
• Shipping Dimension (W — H — D): 487 — 163 — 358 mm
• Net Weight: 6.5 Kg
• Gross Weight: 8.3 Kg

Environmental Conditions

• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -20°C ~ 60°C
• Operating Humidity: 10% ~ 90% RH
• Storage Humidity: 10% ~ 90% RH
• Altitude: Below 5000 meters

Accessories

• Power Adapter —1
• Power Cable —1
• Phoenix Connector —2
• Antenna Adapter Cable —1
• External Antenna —5
