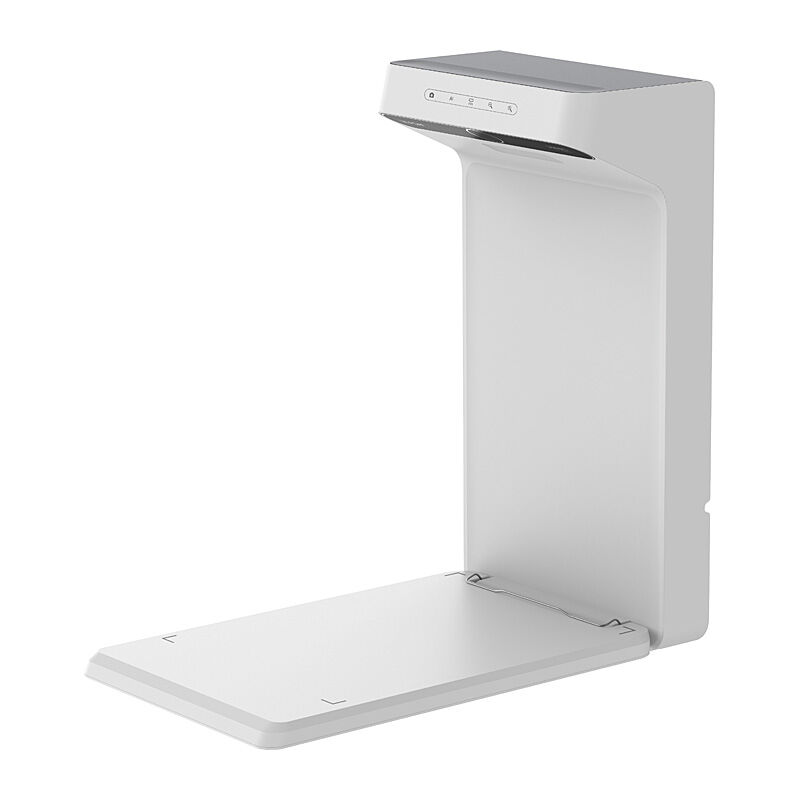

MAXHUB Document camera

Features

• Minimalist Design: One‑piece camera arm design reduces depth‑of‑field for cleaner visuals
• High Resolution: 13MP 4K camera with autofocus for instantly clear imaging
• One‑piece Design: Simply open the lid for immediate use with no folding or assembly required
• Enhanced Image Quality: Shadow noise reduction and darkness enhancement powered by independent ISP technology
• Aesthetic Appearance: Simple white exterior that blends seamlessly with classroom wall surfaces
• Multiple‑screen Analysis: Supports up to 4 screens for comparison or analysis, with note annotation and marker tools

Specifications

Product Parameters

• Model: SC13B
• Pixel: 13M
• Format: A4
• Focus Mode: AF
• Interface Type: USB
• Operating Voltage: DC 5V
• Operating Temperature: 0? – 40?
• Video Output: MJPG output: 2448 × 3264, 3120 × 4208
• Flicker Control: 50 Hz
• Key Functions: Light adjustment, photo & screenshot, one‑key start, image zoom out, image zoom in

Structure Parameters

• Product Size: 230 × 423.5 × 134.8 mm
• Package Size: 318 × 486 × 206 mm
• Net Weight: 2.3 kg
• Gross Weight: 3.15 kg

Accessories

• USB Cable: × 1
• Wall Bracket: × 1
• Wall Mount Bracket: × 1
• Screw Pack: × 1

Environmental Factors

• Operating Temperature: 0? – 40?
• Working Humidity: 10% – 90% RH
• Storage Temperature: -20? – 60?
• Storage Humidity: 10% – 90% RH
• Altitude: Below 5000 meters
