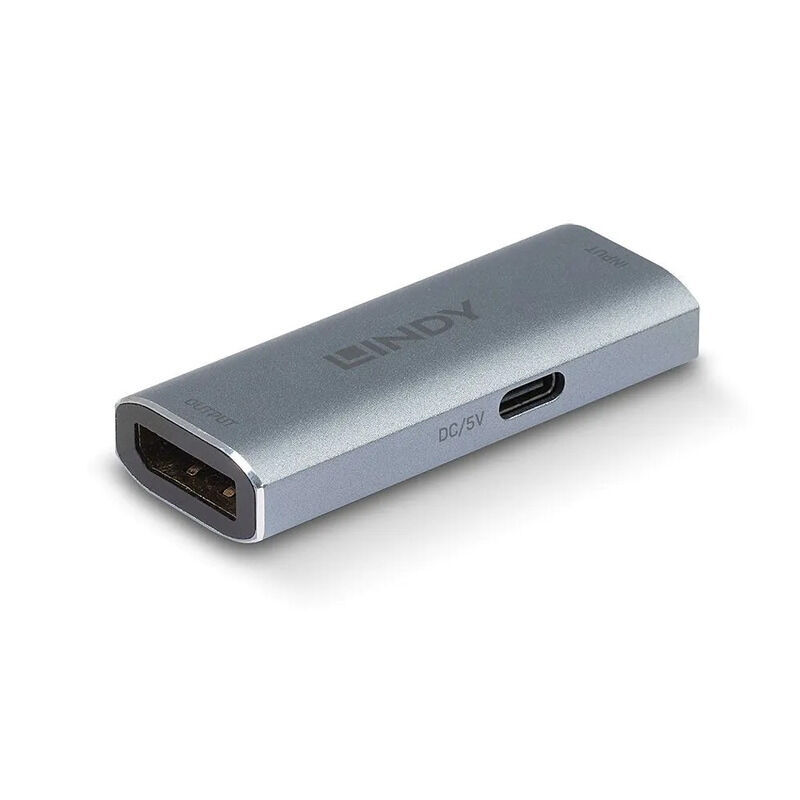

Lindy DisplayPort 1.4 Repeater

Features

• Extends DisplayPort 1.4 signals at distances of up to 20m
• Supports resolutions up to 3840x2160@144Hz 4:4:4 12bit / 7680x4320@60Hz 4:4:4 8bit
• High Dynamic Range support provides deeper blacks, brighter whites and a wider colour gamut (HDR10+)
• Plug and Play Installation – No drivers required
• 2 Year Warranty

Specifications

• V Interface: DisplayPort
• Interface Standard: DisplayPort 1.4
• Supported Bandwidth: 32.4 Gbps
• Maximum Distance (With Multiple Units):
• 40m (131.23ft) - 3840x2160@60Hz
• 15m (49.21ft) - 7680×4320@60Hz / 3840x2160@120Hz
• Maximum Input Distance (Single Unit):
• 10m (32.80ft) - 3840x2160@60Hz
• 5m (16.4ft) - 7680×4320@60Hz / 3840x2160@120Hz
• Maximum Output Distance (Single Unit):
• 10m (32.80ft) - 3840x2160@60Hz
• 5m (16.4ft) - 7680×4320@60Hz / 3840x2160@120Hz
• Maximum Resolution: 7680x4320@60Hz 4:4:4 8bit
• Transmission Medium: 2 x DisplayPort Cable
• Special Features: DPCP Compatible, HDR

Connectors

• Input: DisplayPort (Female)
• Output: DisplayPort (Female)
• Power: USB Type C (Female)

Physical Properties

• Dimensions WxHxD: 23x10x60mm (0.90x0.39x2.36in)
• Housing Material: Aluminium
• Net Weight: 0.041kg (0.09lb)
• Operating Temperature: 5°C - 50°C (41°F - 122°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0-80% RH (non-condensing)
• Colour: Silver

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 133x144mm (5.24x5.67in)
• Gross Weight: 0.05kg (0.11lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH
