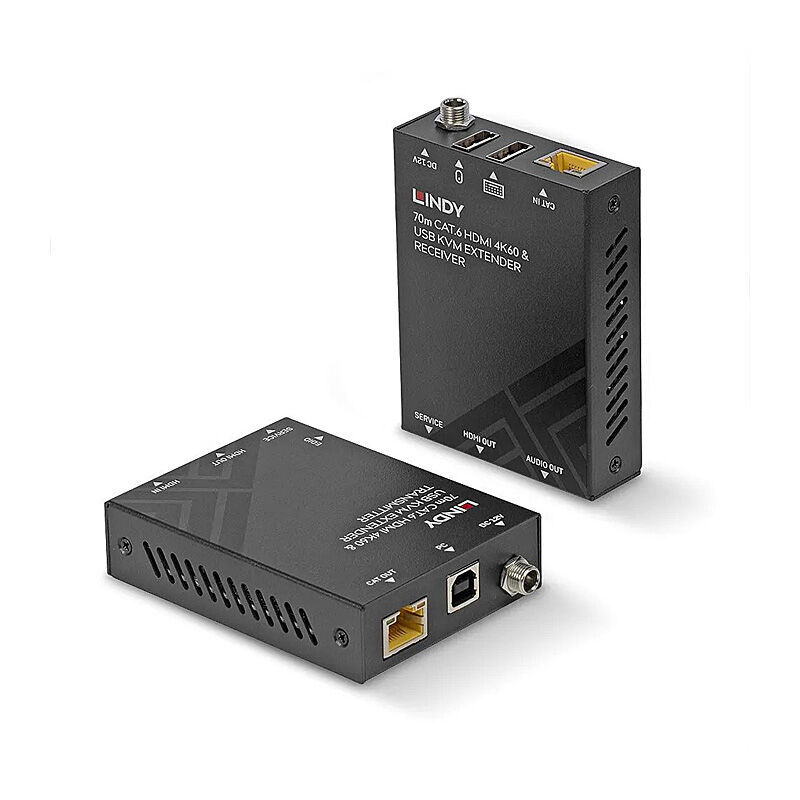

Lindy 70m CAT6 KVM Extender

Lindy 70m CAT6 HDMI 4K60 USB & Audio KVM Extender

Features

• Extends HDMI and USB HID signals up to 70m using a single Cat.6 cable
• Supports HDMI resolutions up to 4K@60Hz 4:4:4 8bit with HDR
• EDID management and HDMI loop-out port to connect one additional display on the transmitter
• Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation
• 2-Year Warranty

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0, USB 1.1
• Supported Bandwidth: 18 Gbps
• Maximum Distance: 70m (229.66ft)
• Maximum Resolution: 3840x2160@30Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID Pass Through: DIP-switch with copy function and presets
• Supported Audio: HDMI Audio Pass-through
• Separate Audio Ports: 3.5mm
• Transmission Medium: 1 x Cat.6
• Special Features: HDMI Loop Out Port, PoC (Power over Cable), Audio de-embedding

Connectors

• Transmitter Input: HDMI Type A (Female), USB Type B (Female)
• Transmitter Output: RJ-45 (Female), HDMI Type A (Female)
• Receiver Input: RJ-45 (Female)
• Receiver Output: HDMI Type A (Female), 2 x USB Type A (Female), 3.5mm Audio (Female)
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 90x68x22mm (3.54x2.68x0.87in) per unit
• Housing Material: Metal
• Net Weight: 0.56kg (1.23lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% RH (non-condensing)
• Power Requirements: 12VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 215x135x75mm (8.46x5.31x2.95in)
• Gross Weight: 0.74kg (1.63lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
