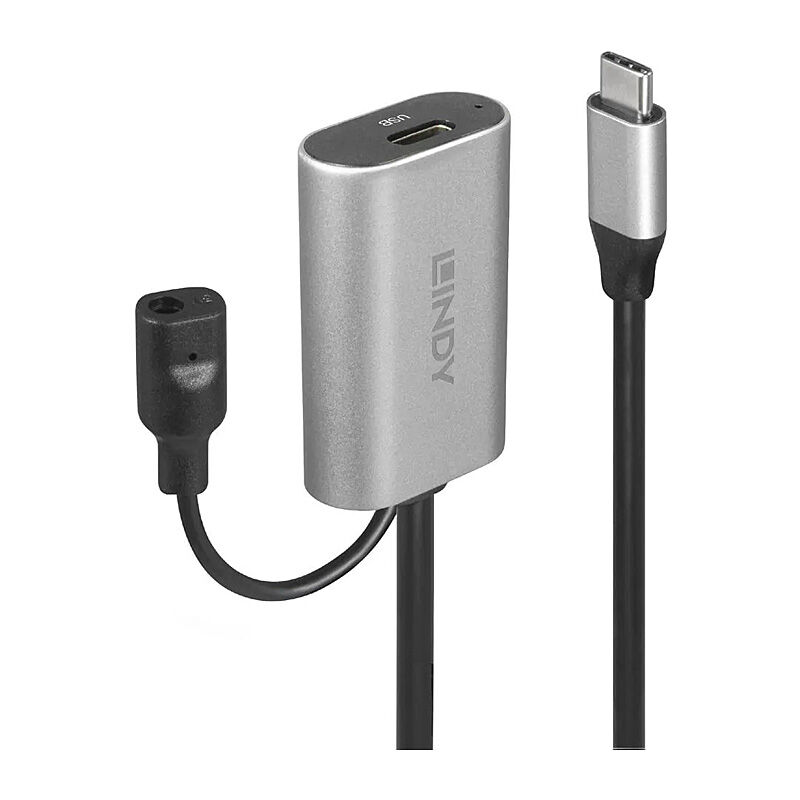

Lindy 5m USB 3.2 Active Ext

Lindy 5m USB 3.2 Gen 1 Active Extension Type C to C

Features

• 5 metre USB 3.2 Active Extension Repeater Cable
• Supports transfer rates up to 5Gbps
• DC socket for connection of an optional external power supply
• Plug & Play
• 2 year warranty

Specifications

Connectors

• Connector A: USB Type C Male
• Connector B: USB Type C Female
• Power: 3.5/1.35mm DC Connector
• Housing Material: Aluminium
• Connector Plating: Nickel plated shell
• Pin Construction: Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
• USB C Male: 11.65x36x6.5mm (0.46x1.42x0.26in)
• USB C Female (housing): 28.6x45x14.1mm (1.13x1.77x0.56in)

Cable Construction

• Length: 5m (16.4ft)
• Standard: USB 3.1 Gen 1 / 3.0
• Colour: Black
• Type: Round
• Jacket Diameter: 4.6mm (0.18in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 28AWG+28AWG+22AWG
• Shielding: 85% TC

Specifications

• Supported Bandwidth: 5Gbps
• Minimum Bend Radius: 36mm (1.42in)
• Operating Temperature: 0°C to 40°C (32°F - 104°F)
• Storage Temperature: -10°C to 60°C (14°F - 140°F)
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 3.1 Gen 1 / 3.0

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 165x165x30mm (6.5x6.5x1.18in)
• Net Weight: 0.198kg (0.44lb)
• Gross Weight: 0.253kg (0.56lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• 5m USB 3.2 Active Extension Cable Type C to C
