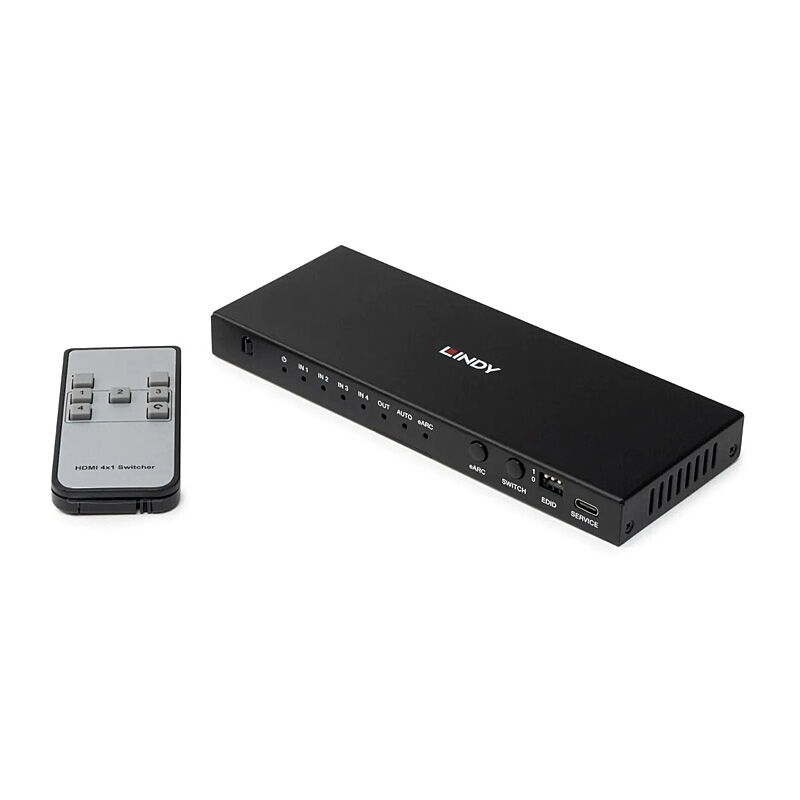

Lindy 4P HDMI Switch with eARC

Features

• Switch between 4 HDMI® 2.1 source devices connected to a single HDMI® 2.1 display
• Supports resolutions up to 8K@60Hz, with additional support for HDR
• Supports eARC and the extraction of digital and analogue audio from a HDMI® source device
• Seamless control via IR remote, push button and auto switching
• 2 year warranty

Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI® 2.1
• Supported Bandwidth: 48Gbit/s
• Maximum Resolution: 7680×4320@60Hz
• HDCP Support: 2.3
• Supported Audio: Audio Pass-through
• Separate Audio Ports: 3.5mm, Toslink (optical)
• IR Support: 38kHz
• CEC Support: Yes
• Special Features: HDR, eARC

Connectors

• Input: 4 × HDMI® Type A (Female)
• Output: HDMI® Type A (Female), 3.5mm (Female), Toslink (Optical) (Female)
• Power: 5.5/2.5mm

Physical Properties

• Dimensions (approx.) WxDxH: 176×18×68 mm (6.85×0.71×2.68 in)
• Housing Material: Metal
• Net Weight: 0.311 kg (0.69 lb)
• Operating Temperature: 0°C–40°C (32°F–104°F)
• Storage Temperature: -20°C–60°C (-4°F–140°F)
• Humidity: 20–90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 240×70×130 mm (9.45×2.76×5.12 in)
• Gross Weight: 0.54 kg (1.19 lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH
