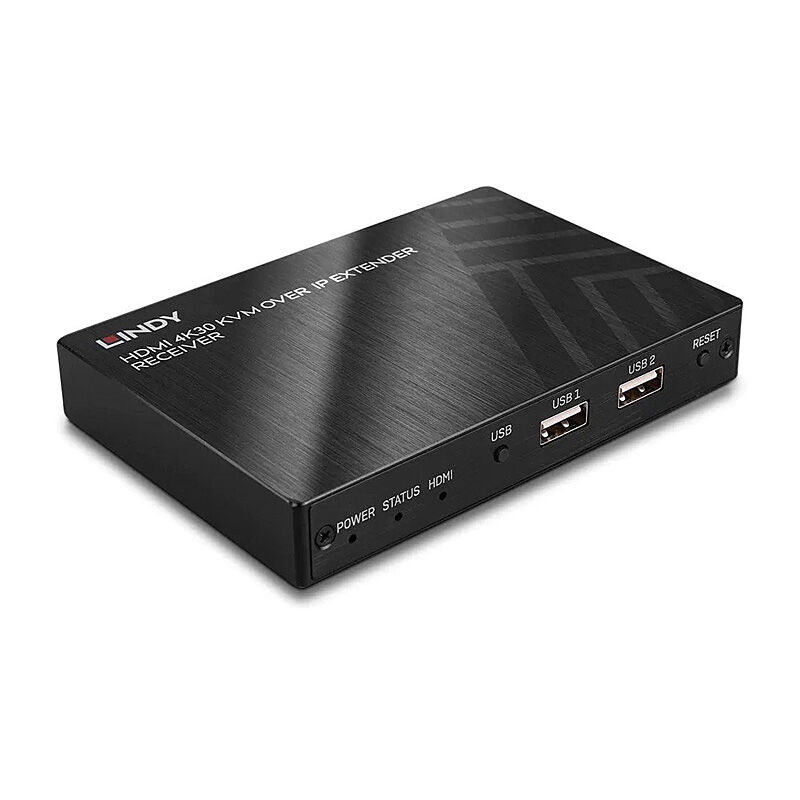

Lindy 4K KVM Over IP Ext (R)

Features

• Extends HDMI 4K30, USB HID and IR over an IP network
• Supports point to point and point to multipoint installation up to 150m
• HDMI 1.4 & HDCP 1.4 compliant
• Requires a Gigabit Ethernet (1000BaseT) compliant network for multipoint installation
• 2 year warranty

Specifications

• AV Interface: HDMI
• Console Interface: USB
• Interfaces Standard: HDMI 1.4, USB (HID)
• Supported Bandwidth: 10.2Gbps
• Maximum Distance: 150m (492.12ft) (Point to Point)
• Maximum Resolution: 4K@30Hz (3840x2160@30Hz)
• HDCP Support: HDCP 1.4
• Supported Audio: Audio supported over HDMI signal
• Separate Audio Ports: -
• Transmission Protocol: IP
• Transmission Medium: Cat.5e / 6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Special Features: IR Signal (25 to 56kHz) forwarding

Connectors

• Transmitter KVM Interfaces: -
• Transmitter Extension Port: -
• Receiver Console Interface: HDMI (Female), 2 x USB Type A (Female), IR 3.5mm (Female)
• Receiver Extension Port: RJ45
• Bi-directional Ports: -
• Other Interfaces: IR 3.5mm (Female)
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions (approx.) WxDxH: 165x80x21mm (6.5x3.15x0.83in)
• Housing Material: Plastic
• Net Weight: 0.2kg (0.45lb)
• Operating Temperature: 0°C - 55°C (32°F - 131°F)
• Storage Temperature: -10°C - 75°C (14°F - 167°F)
• Humidity: 10 - 80% RH (non-condensing)
• Power Requirements: 5VDC 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 220x170x60mm (8.66x6.69x2.36in)
• Gross Weight: 0.8kg (1.76lb)
• Warranty (Years): 2
• Certification: CE, FCC, RoHS, REACH
