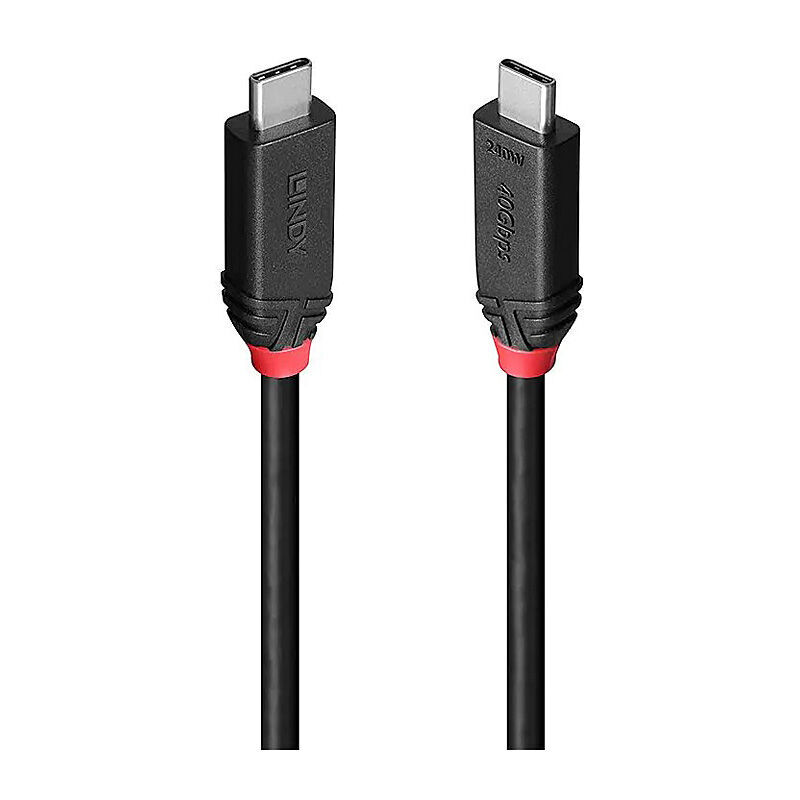

Lindy 0.5m USB4 240W TypeC CBL

Features

• Entry level USB4 Gen 3x2 Type C to C cable for home and small office applications
• Supports data transfer speeds up to 40Gbps (backwards compatible to USB 3.2, USB 2.0 and Thunderbolt 3)
• Supports USB Power Delivery up to 240 Watt and DisplayPort 2.0 Alternate Mode with single 8K or dual 4K@60Hz
• Triple shielded cable, gold plated contacts and nickel plated connectors
• 2 year warranty

Specifications

Connectors

• Connector A: USB Type 4 C Male
• Connector B: USB Type 4 C Male
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH: 34.8x12.7x7.4mm (1.37x0.5x0.29in)

Cable Construction

• Standard: USB4 Gen 3x2
• Power Delivery: PD 3.1
• Max. Power: 240W (48V 5A, Extended Power Range), 100W (20V 5A, Standard Power Range)
• Colour: Black
• Type: Round
• Jacket Diameter: 4.5mm (0.18in)
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge Power: 24AWG
• Conductor Gauge Data: 32AWG
• Shielding: Aluminium Foil + 60% Braiding

Specifications

• Supported Bandwidth: 40Gbps
• Maximum Resolution: 3840x2160@60Hz, 7680x4320@60Hz
• Nominal Attenuation: -12.2dB @ 5G, -18.3dB @ 10G
• Minimum Bend Radius: 20mm (0.79in)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -10°C - 60°C (14°F - 140°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Product Compliance: RoHS, REACH, California Proposition 65
