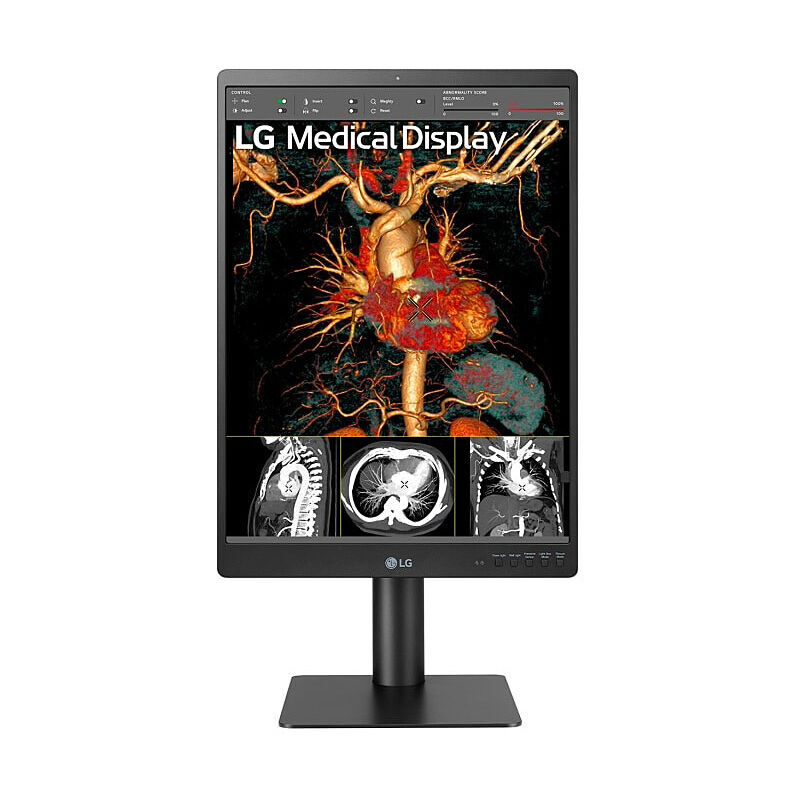

LG 21'' Medical Monitor

LG 21'' 3MP IPS Diagnostic Monitor, 1100Nits, 5 Year Warranty

Features

• 21.3-inch 3MP IPS Display
• 1200cd/m² Brightness (Typ.)
• Pathology Mode, Focus View Mode
• Down light & Wall light
• Ergonomic Design

Specifications

Display

• Size [Inch]: 21.3
• Aspect Ratio: 3:4
• Response Time: 5ms (GtG at Faster)
• Resolution: 1536 × 2048
• Pixel Pitch [mm]: 0.2115 × 0.2115
• Viewing Angle (CR≥10): 178° (Right/Left), 178° (Up/Down)
• Brightness (Typ.) [cd/m²]: 1100
• Contrast Ratio (Typ.): 1800:1
• Colour Gamut (Typ.): NTSC 72%
• Colour Bit: 10bit
• Surface Treatment: Anti-glare, 3H

Connectivity

• DisplayPort: YES (In 2ea / Out 1ea)
• USB Downstream Port: YES (2ea / ver3.0)
• USB Upstream Port: YES (2ea / ver3.0)
• Daisy Chain: YES (3MP / 60Hz)

Features

• Smart Energy Saving: YES
• Flicker Safe: YES
• Black Stabiliser: YES
• Reader Mode: YES (Text mode)
• Super Resolution+: YES
• Auto Brightness: YES
• Brightness Stabilisation: YES
• Colour Temperature: 6500K / 7500K / 9300K / Manual (5000K ~ 10000K)
• DICOM Compliant: YES
• Focus View: YES
• Front Sensor: YES
• Hot Key: YES (5keys)
• HW Calibration: YES (PerfectLum)
• Lighting: YES (Down / Wall)
• Light Box Mode: YES
• Pathology Mode: YES
• Presence Sensor: YES

Mechanical

• Display Position Adjustments: Tilt / Height / Pivot
• Wall Mountable [mm]: 100 × 100
• Borderless Design: Normal
• Mechanical Power Switch: YES
• OneClick Stand: YES

Dimensions / Weights

• Dimension in Shipping (W × H × D): 567 × 187 × 652 mm
• Dimension with Stand (W × H × D): 343.1 × 640 × 234.6 mm
• Dimension without Stand (W × H × D): 343.1 × 484 × 72.4 mm
• Weight in Shipping: 10.5 kg
• Weight with Stand: 7 kg
• Weight without Stand: 5 kg

Power

• Power Consumption (DC Off): Less than 0.3W
• AC Input: 100-240Vac, 50/60Hz
• Type: External Power (Adapter)
• DC Output: 19V, 6.32A

Accessory

• Display Port: YES
• Adapter: YES
• Calibration Report (Paper): YES
• DVI-D: YES
• Power Cord: YES
• USB A to B: YES

Standard

• RoHS: YES
• CE: MDR
• EN (EN 60601-1 / EN 60601-1-2): YES
• EN (EN 60950-1 / EN 55032, 55024): YES
• FDA: 510(k) (Class II)
• GMP: YES
• IEC (IEC 60601-1 / IEC 60601-1-2): YES
• IEC (IEC 60950-1 / IEC 55032, 55024): YES
• ISO13485: YES
• MFDS: YES
• REACH: YES
• UL (cUL): YES
• WEEE: YES
