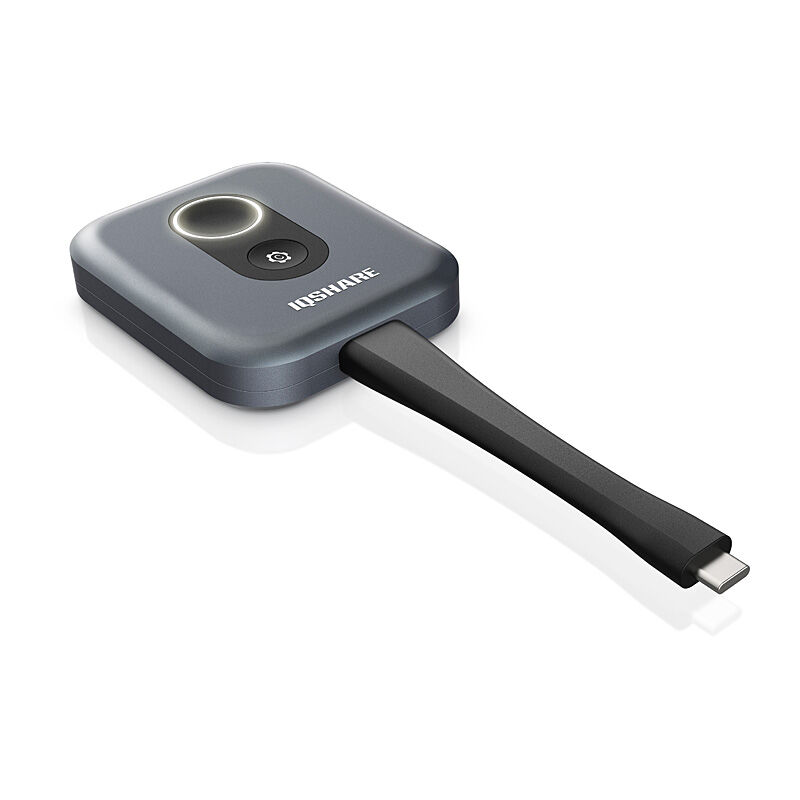

IQBOARD IQShare Button

IQBOARD IQShare Button

Features

• UFC (Ultra Fast Casting) Technology
• Two buttons with customized button
• Plug & play
• Automatic pairing
• APP Free
• Touchback
• 4K wireless casting
• Wireless BY

Specifications

Interface

• HDMI (19PIN)
• USB-A
• USB-C (With DisplayPort Alternate Mode)

Output Resolution

• 4K@30FPS

Video Standard

• HDMI1.4
• DP1.2
• eDP1.4

USB Standard

• 2.0

Audio

• 16bit 44KHz

USB HID Function

• YES

BYOM Function

• YES

Supported System

• Windows7/8/10, macOS, ChromeOS, Android, Linux
• Any device supports full featured Type-C (DP Alt mode)

Touchback Control

• 10 Points (Linux, Windows, ChromeOS)
• Mouse mode (macOS)

Wireless Transmission Protocol

• IEEE 802.11 a/b/g/n/ac/ax

Wi?Fi Standard

• 2.4 GHz & 5 GHz

Wireless Transmission Frame Rate (depending on environment)

• BYOD mode: Up to 60FPS
• BYOM mode: Up to 30FPS

Input Resolution

• BYOD mode: Up to 4K 30FPS
• BYOM mode: Up to 1080P 30FPS

Audio Rate

• 16bit 44KHz

Distance (between Button and IFP/BOX)

• Max. 30m (depend on network condition)

Authentication Protocol

• WPA2 Personal (WPA2?PSK)

Security (Encryption)

• AES

Button

• Cast button*1
• Custom button*1 (Linux, Windows and macOS are supported)

Power

• 5V, 0.9A, Max 4.5W

Temperature Range

• Operating: 0°C to +40°C (+32°F to +104°F)
• Storage: -10°C to +60°C (+14°F to +140°F)

Humidity Range

• Operating: 10% to 80% relative humidity
• Storage: 5% to 90% relative humidity

Dimension (W*H*D) (mm)

• 63*175*17

Weight (g)

• 80
