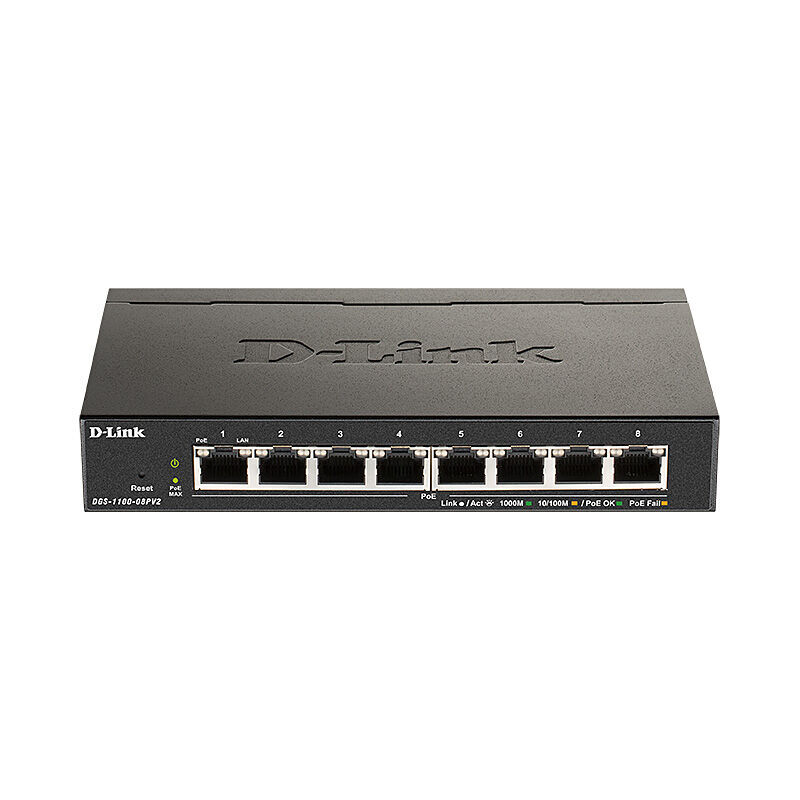

D-LINKDGS-1100-08P PoE Switch

The DGS-1100-08P consists of eight 10/100/1000 Mbps PoE+ Ports and comes in a compact enclosure. Switch management can be performed through a web management interface or through the SmartConsole Utility.

Features

• 8 x 10/100/1000BASE-T PoE+ ports
• PoE+ support with up to 30W per port
• 64 Watts PoE Power Budget
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
• Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
• Innovative energy saving features are good for your budget, as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management

Specifications

• Switch Type: Layer 2
• Type of Port Required: Gigabit Copper
• Number of Ports: 5 – 16
• PoE Type Required: PoE, PoE+
• High Speed Stacking: No
• Design: Desktop, Fanless
• 1000Base-T Ports: 8 Ports
• PoE Ports: 8 Ports
• PoE Budget: 64 Watts
• Switching Capacity: 16 Gbps
• QoS: Yes
• Spanning Tree Protocol: Yes
• Link Aggregation: Yes
• VLAN: 32 Groups
• Surveillance VLAN: Yes
• Jumbo Frame: 9216 bytes
• Voice VLAN: Yes
• IGMP Snooping: Yes
• Cable Diagnostics: Yes
• Energy Saving Technology: EEE Compliant, D-Link Green, RoHS 6 Compliant
• 19" Rack Mountable: No
• Fans: Fanless
• Dimensions (Size): 171 x 98 x 29 mm
• Web-based GUI: Yes
• Command Line Interface: No
• Types of Ports: Gigabit Ports
• Static Routing: No
• Switch Series: DGS-1100 Series
