Brand: TP-LINK

Category: Network - Consumer / Network Switches

SKU: TL-SG1016

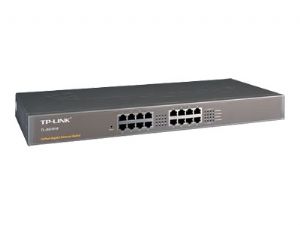

Description: TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch 16 10/100/1000Mbps RJ45 ports Innovative energy-efficient technology saves power consumption Supports MAC address self-learning and auto MDI/MDIX Standard 19-inch rack-mountable steel case HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, IEEE 802.1p Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100-240VAC, 50/60Hz Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm) Mounting Rack Mountable Max Power Consumption 10.44W Max Heat Dissipation 35.60BTU/h PERFORMANCE Switching Capacity 32Gbps Packet Forwarding Rate 23.8Mpps MAC Address Table 8K Jumbo Frame 10KB QoS 802.1p/DSCP QoS* *Only for V12 and later version Green Technology Yes Transfer Method Store-and-Forward

Brand: TP-LINK

Category: Network - Consumer / Network Switches

SKU: TL-SG1016D

Description: The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network. 16 10/100/1000Mbps ports Innovative energy-efficient technology saves power up to 15%* Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation Plug & play design

Brand: TP-LINK

Category: Network - Consumer / Network Switches

SKU: TL-SG1016DE

Description: 16 10/100/1000Mbps ports provide instant large file transfers Innovative energy-efficient technology reduces power consumption by up to 40% IEEE 802.3x flow control provides reliable data transfers 10K Jumbo frame improves performance of large data transfers Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics Port and tag-based QoS enable smooth latency-sensitive traffic Abundant VLAN features improve network security via traffic segmentation IGMP Snooping optimizes multicast applications Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility

Brand: TP-LINK

Category: Network - Consumer / Network Switches

SKU: TL-SG1016PE

Description: 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ 16 10/100/1000Mbps RJ45 ports Equipped with 8 PoE+ supported ports to transfer data and power over a single cable Works with IEEE 802.3af/at compliant devices, expanding home and office networks Innovative energy-efficient technology reduces power output by up to 75%* Plug and play design, no configuration required *Actual data may vary in different usage environment. HARDWARE FEATURES Interface 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity 1 Power Supply 100-240VAC, 50/60Hz Power Consumption Maximum (PoE on): 124.4W (220V/50Hz) Maximum (PoE off): 14.4W (220V/50Hz) PoE+ Ports(RJ45) 8 Ports Backbound Bandwidth 32 Gbps Mac Address Table 8K Buffer Size 1.5 Mbits Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) SOFTWARE FEATURES Transfer Method Store-And-Forward Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode OTHERS Certification FCC, CE, RoHS Package Contents TL-SG1016PE Power Cord Installation Guide Rackmount Kit Rubber Feet Consumption 9.5 watts (max. no PD connected) 140.1 watts (max. with 126w PD connected) Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
