Brand: TP-LINK

Category: Network - Consumer / Network Switches

SKU: TL-SG1008MP

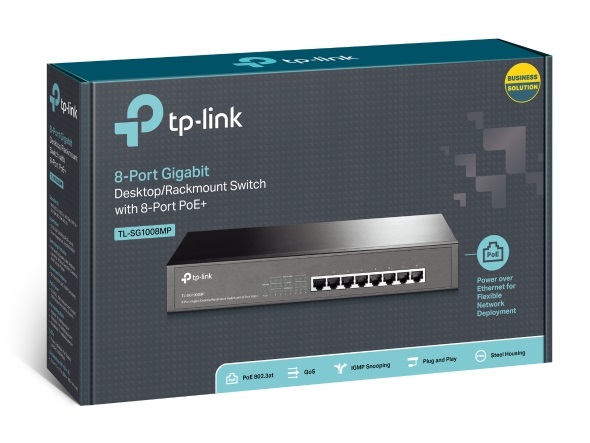

Description: TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ (Replacement model of TL-SG1008PE) • 8 10/100/1000Mbps RJ45 ports • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable • Works with IEEE 802.3af/at compliant devices, expanding home and office networks • Innovative energy-efficient technology reduces power consumption by up to 75%* • Supports PoE+ standard with total power budget of 126W and up to 30W per port • Plug and play design, no configuration required HARDWARE FEATURES Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity 1 Physical Security Lock No Power Supply 100-240VAC, 50/60Hz PoE+ Ports(RJ45) Standard: 802.3at/af compliant PoE+ Ports: 8 Ports Power Supply: 126W Backbound Bandwidth 16Gbps Mac Address Table 4K Buffer Size 1.5Mbits Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) Mounting Rack Mountable Max Power Consumption 9.89W(220V/50Hz. no PD connected) 140.67W(110V/60Hz. with 126W PD connected) Max Heat Dissipation 33.74BTU/h(no PD connected) 492.56BTU/h(with 126W PD connected ) SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3af/at Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode Transfer Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet

Brand: TP-LINK

Category: Network - Consumer / Network Switches

SKU: TL-SG1008P

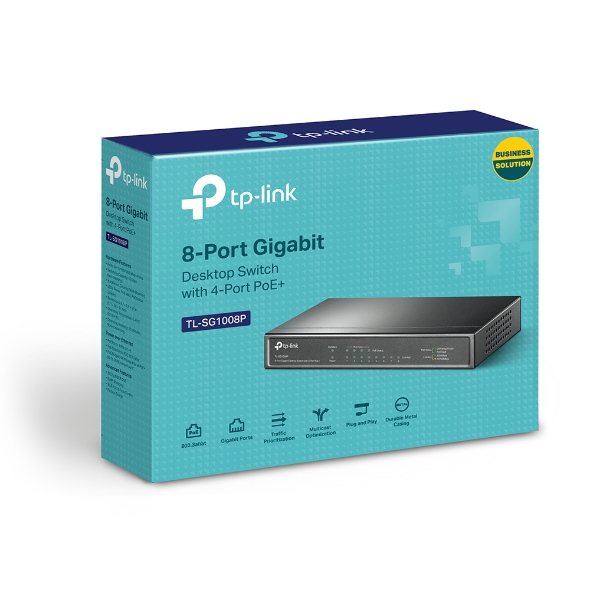

Description: Supports PoE power up to 15.4W for each PoE port Supports PoE power up to 53W for all PoE ports Supports PoE IEEE 802.3af compliant PDs Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode 8K entry MAC address table of the TL-SG1008P with auto-learning and auto-aging LED indicators for monitoring power, link, activity and speed External power adapter supply
