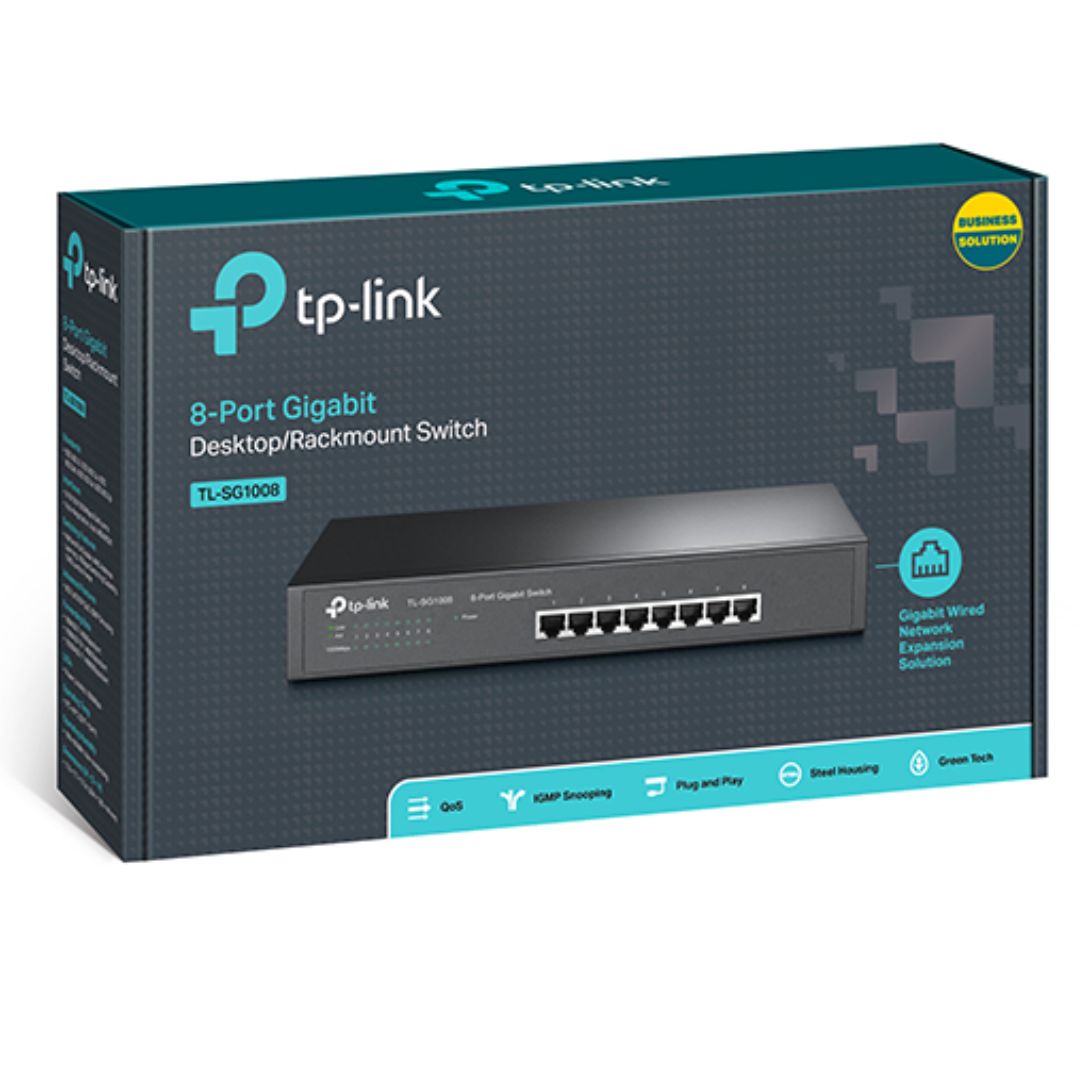

Brand: TP-LINK

Category: Network - Consumer / Network Switches

SKU: TL-SG1008

Description: Innovative energy-efficient technology saves power up to 60% 100% Data filtering rate eliminates all error packets Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput 16Gbps Switching Capacity Auto-MDI/MDIX eliminates the need for crossover cables Supports MAC address auto-learning and auto-aging Support the port N-Way Auto-Negotiation, Store and Forward Compact size design for desktops, rackmountable Plug and Play design simplifies installation Fanless design to make sure it works quietly

Brand: TP-LINK

Category: Network - Consumer / Network Switches

SKU: TL-SG1008D

Description: TP-Link TL-SG1008D 8-Port Gigabit Unmanaged Switch Desktop Wall-Mounting Plastic Case Fanless Supports MAC address 802.1p/DSCP QoS 8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX Green Ethernet technology saves the power up to 80% IEEE 802.3x flow control provides reliable data transfer Plastic case, desktop or wall-mounting design Plug and play, no configuration required HARDWARE FEATURES Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Fan Quantity Fanless Physical Security Lock No External Power Supply External Power Adapter (Output: 9VDC/0.6A) Jumbo Frame 15 KB Switching Capacity 16 Gbps Dimensions ( W x D x H ) 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm) Max Power Consumption 4.63W(220V/50Hz) Max Heat Dissipation 15.80BTU/h SOFTWARE FEATURES Transfer Method Store and Forward MAC Address Table 4K Advanced Functions Green Technology 802.3X Flow Control Back Pressure 802.1p/DSCP QoS (for V7 and later version) OTHERS Certification FCC, CE, RoHs Package Contents 8-Port Gigabit Desktop Switch TL-SG1008D Power Adapter Installation Guide System Requirements Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Warranty Limited 3-Year Warranty For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma

Brand: TP-LINK

Category: Network - Consumer / Network Switches

SKU: TL-SG1008MP

Description: TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ (Replacement model of TL-SG1008PE) • 8 10/100/1000Mbps RJ45 ports • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable • Works with IEEE 802.3af/at compliant devices, expanding home and office networks • Innovative energy-efficient technology reduces power consumption by up to 75%* • Supports PoE+ standard with total power budget of 126W and up to 30W per port • Plug and play design, no configuration required HARDWARE FEATURES Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity 1 Physical Security Lock No Power Supply 100-240VAC, 50/60Hz PoE+ Ports(RJ45) Standard: 802.3at/af compliant PoE+ Ports: 8 Ports Power Supply: 126W Backbound Bandwidth 16Gbps Mac Address Table 4K Buffer Size 1.5Mbits Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) Mounting Rack Mountable Max Power Consumption 9.89W(220V/50Hz. no PD connected) 140.67W(110V/60Hz. with 126W PD connected) Max Heat Dissipation 33.74BTU/h(no PD connected) 492.56BTU/h(with 126W PD connected ) SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3af/at Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode Transfer Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet

Brand: TP-LINK

Category: Network - Consumer / Network Switches

SKU: TL-SG1008P

Description: Supports PoE power up to 15.4W for each PoE port Supports PoE power up to 53W for all PoE ports Supports PoE IEEE 802.3af compliant PDs Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode 8K entry MAC address table of the TL-SG1008P with auto-learning and auto-aging LED indicators for monitoring power, link, activity and speed External power adapter supply
