Brand: TP-LINK

Category: Network - SMB / TP-Link Omada

SKU: SG2210P

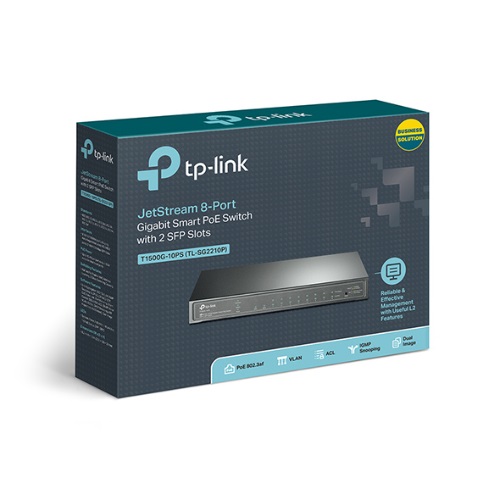

Description: TP-Link T1500G-10PS (TL-SG2210P) JetStream 8-Port Gigabit Smart PoE Switch with 2 SFP Slots Features 8 PoE ports, with total PoE power budget of 53W and useful PoE power management features Gigabit Ethernet connections on all ports provide full speed of data transferring Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication L2/L3/L4 QoS and IGMP snooping optimize voice and video applications WEB/CLI managed modes, SNMP, RMON bring abundant management features Dual Firmware Image improves reliability and up-time of your network ARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports Port8 obtain power from PoE source (Auto-Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100~240VAC, 50/60Hz External Power Adapter(Output: 48VDC/1.25A) Power Consumption Maximum (PoE on): 64.9W Maximum (PoE off): 9.9W PoE Ports (RJ45) Standard: 802.3af compliant PoE Ports: 8 Ports Power Supply: 53W Dimensions ( W x D x H ) 209 * 126 * 26mm Max Power Consumption 9.92W (220V/50Hz with no PD connected) 64.89W (110V/60Hz with 53W PD connected) Max Heat Dissipation 33.85 BTU/h (with no PD connected) 221.40 BTU/h (with 53W PD connected) PERFORMANCE Bandwidth/Backplane 20Gbps Packet Forwarding Rate 14.9Mpps MAC Address Table 8K Jumbo Frame 9KB

Brand: TP-LINK

Category: Network - Consumer / Line Filters & Splitters

SKU: SM311LM

Description: TP-Link SM311LM Multi-Mode Mini GBIC SFP Module for T3700G-28TQ TL-SG5412F TL-SG5428 TL-SL5428E TL-SG3210 TL-SG3216 TL-SG3424P TL-SL3428 TL-SL3452 Multi-mode MiniGBIC module Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L What This Product Does The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost. Features Supports full-duplex Plug-and-Play Supports Pull-or-Plug with power on switches Power: internal power from switches Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L Supports full-duplex Plug-and-Play Supports Pull-or-Plug with power on switches Power: internal power from switches Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L MEDIA CONVERTER & MODULE Standards and Protocols IEEE 802.3z, CSMA/CD, TCP/IP Wave Length 850nm Power Supply 3.3V Safety & Emission FCC, CE Cabel Multi-mode Fiber Fiber Type 50/125μm or 62.5/125μm Multi-mode Max. Cable Length 550m Data Rate 1.25Gbps Port Type LC/UPC Environment Operating Temperature: 0℃~70℃ (32℉~158℉) Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Brand: TP-LINK

Category: Network - Consumer / Line Filters & Splitters

SKU: SM311LS

Description: Single-mode MiniGBIC module Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber) Compatible with all SFP ports on TP-Link products including JetStream switches, and media converter MC220L. Work with MC210CS with a single-mode fiber connection
