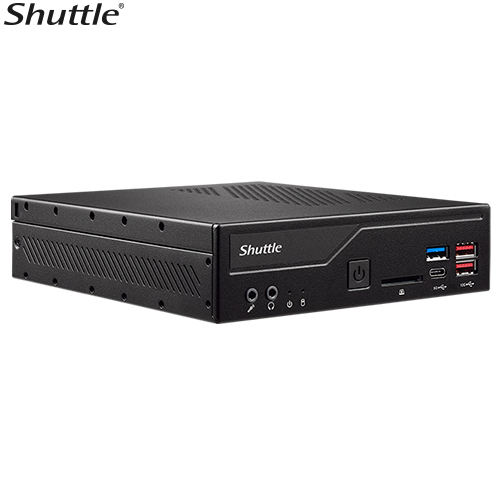

Brand: Shuttle

Category: Systems - NUC/SFF/AIO / Kiosk

SKU: DH670 V2

Description: Shuttle DH670 Slim Mini PC 1L Barebone-Support Intel 12th Gen, 2x DDR4, 2.5' HDD/SSD bay, 2xLAN, 2x RS232(RS422/485), 2xHDMI, 2xDP, 120W Form Factor 1.3L chassis Processor Support Intel 12/13th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W Processor BIOS v2.05 and updated version support Raptor Lake (13th) CPU Chipset Intel H670 Express Chipset Memory 2x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz Video Output HDMI 2.0 x 2+ DisplayPort x 2, Quad Video Outputs 4K playback (Dual Channel Memory Recommended) Integrated in CPU Audio Realtek ALC662/897/888S High Definition Audio Ethernet 2x Intel Gigabit LAN (DH670) 2x Intel 2.5GbE LAN (DH670 V2) Supports 10/100/1000 Mb/Sec. Support wake ON LAN (WOL) feature Storage Interface SATA 6.0Gb/s interface Onboard Connectors 1x 4pin fan connector 1x VGA(For PVG01 use) 1x 1x4 pin USB header(For WWN03 use) 1x SATA connector w/power 1x Front audio header 1x Auto power on header 1x RS232 voltage switch Front Panel 2x USB 3.2 Gen1 ports 2x USB 3.2 Gen2 ports 1x Microphone-In 1x Line-Out 1x Power-On button 1x Power LED 1x HD Back Panel 2x RJ45 LAN ports 2x HDMI port 2x Display port 2x USB 3.2 Gen1 ports 2x USB 3.2 Gen2 ports 1x RS232 1x RS232/RS422/RS485 1x External 4pin header 1x DC-in 2x Wireless Antenna fixture 1x Kensington lock Drive Bays 1x 2.5' HDD / SSD bay Dimensions 190(L) x 165(W) x 43(H) mm Power 120W Power Adapter Input:100- 240V AC 19V 6.32A Accessories VESA mount VESA Screw pack 120W adapter Expansion Slot 1x M.2 2280 Type M key socket 1x M.2 2230 Type E key socket OS Support Windows 10/11 64 bit O.S Linux

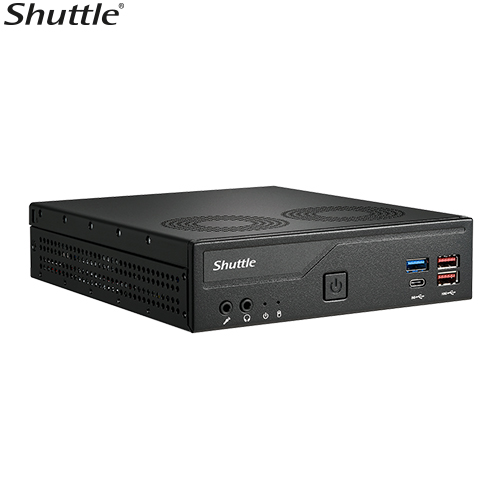

Brand: Shuttle

Category: Systems - NUC/SFF/AIO / Kiosk

SKU: DH770

Description: The Shuttle XPC Slim DH770 is a 1.3-liter Barebone Mini-PC featuring the H770 chipset, designed to support Intel® 12th, 13th, and 14th generation LGA1700 processors with a maximum TDP of up to 65W. Thanks to Intel® UHD graphics and dual DDR5-5600 support, the DH770 delivers enhanced graphics performance, faster memory access, and robust multitasking capabilities. It excels in AIoT Edge tasks, crystal-clear video streaming, and various demanding applications. Its compact design houses a wide array of I/O interfaces, including HDMI 2.0, DisplayPort 1.4, USB 3.2, COM (RS232/422/485), SATA 3.0, M.2 SSD, dual 2.5G LAN, and WLAN expansion. Whether utilized for a 4-display TV wall, interactive digital signage, NVR stations, or automation control, the DH770 offers exceptional versatility and reliability across various industries. FORM FACTOR 1.3L chassis PROCESSOR Support Intel® 12th/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700 CPU max. TDP 65W CHIPSET Intel H770 Express chipset MEMORY 2 x DDR5 SODIMM slots,32GB per DIMM (Max 64GB) DDR5 5600 MHz VIDEO OUTPUT HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs 4K playback (Dual channel memory recommended) Integrated in CPU AUDIO Realtek ALC 888S High Definition Audio ETHERNET (2)Intel 2.5GbE LAN Supports 10/100/1000 Mb/Sec. Support wake ON LAN (WOL) feature STORAGE INTERFACE SATA 6.0Gb/s interface NVMe interface Support SATA RAID 0,1 ONBOARD CONNECTORS (1) 4pin fan connector (1) VGA(For PVG01 use) (1) 1x4 pin USB header(For WWN03 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header (1) RS232 voltage switch FRONT PANEL (2) USB 3.2 Gen1 ports (Include Type C x1) (2) USB 3.2 Gen2 ports (1) Microphone-In (1) Line-Out (1) Power-On button (1) Power LED (1) HDD LED BACK PANEL (2) RJ45 LAN port w/LED (2) HDMI port (2) Display port (2) USB 3.2 Gen1 ports (2) USB 3.2 Gen2 ports (1) RS232 (1) RS232/RS422/RS485 (1) External 4pin header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock DRIVE BAYS (1) 2.5' HDD / SSD bay DIMENSIONS 190(L) x 165(W) x 43(H) mm Dimension drawing POWER 120W Power Adapter Input:100- 240V AC 19V 6.32A ACCESSORIES XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 120W adapter EXPANSION SLOT (1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket OS SUPPORT Windows 11 64 bit O.S Linux REMARK RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide. OPERATING TEMPERATURE 0℃~50℃

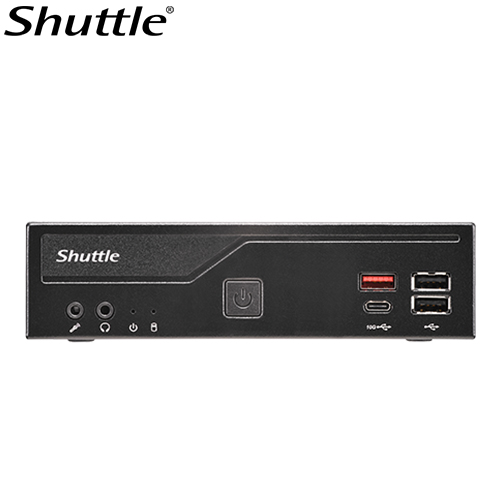

Brand: Shuttle

Category: Systems - NUC/SFF/AIO / Kiosk

SKU: DH810

Description: The Shuttle DH810 is a 1.3L robust PC that harnesses the power of Intel® Core™ Ultra LGA1851 processors. With support of up to 96GB of DDR5-5600MHz RAM in dual-channel mode and integrated Intel® Graphics, DH810 ensures seamless multitasking and rapid data processing, making it ideal for commercial tasks and demanding AI workloads. The DH810 supports up to 8K resolution via HDMI, along with triple independent 4K display, delivering a stunning visual experience for Pro AV applications, including digital signage and entertainment. ● Core configuration: Up to 24 cores (8 Performance-cores and 16 Efficient-cores) ● Enhanced Graphics Performance: The integrated Intel® Graphics significantly enhance DH810’s suitability for commercial applications. ● Maximum capacity of up to 96GB (48GB per slot) ● Fast data processing capabilities at 1.1V, improving power efficiency ● 1 x M.2 2280, M key slot for PCIe Gen 4x4 or SATA 6Gb ● 1 x M.2 2230, E key slot for PCIe Gen 3x1, USB2.0, Intel CNVi module or Wlan-M module ● BIOS and Utility Features: Wake on LAN, Power-On After Power Failure, RTC Power-on, Watch Dog, and Auto Power on ● Reliable Performance: Shuttle’s exclusive heat pipe cooling technology ensures 24/7 stable operation in environments ranging from 0 to 50°C ● Flexible Mounting Methods: Supports VESA mounting standards of 75x75 and 100x100, allowing easy installation on walls or behind displays, perfect for space-constrained environment ● Operation System Support: Windows 11 and Linux FORM FACTOR 1.3L chassis PROCESSOR Intel® Core™ Ultra 200 series LGA1851 processors, TDP up to 65W. CHIPSET Intel H810 Express chipset MEMORY 2 x DDR5 SODIMM slots,48GB per DIMM (Max 96GB) DDR5 5600 MHz VIDEO OUTPUT (1) HDMI 2.1 (TMDS) (2) DP (Include 1 form USB 4.0 port) Triple video outputs 4K playback (Dual channel memory recommended) Integrated in CPU AUDIO Realtek ALC 888S High Definition Audio ETHERNET (1) Intel 2.5GbE LAN (1) Intel 1GbE LAN Supports 10/100/1000 Mb/Sec. Support wake ON LAN (WOL) feature STORAGE INTERFACE SATA 6.0Gb/s interface NVMe interface Support SATA RAID 0,1 ONBOARD CONNECTORS (1) 4pin fan connector (1) VGA(For PVG01 use) (1) 1x4 pin USB header(For WWN03 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header (1) RS232 voltage switch FRONT PANEL (2) USB 3.2 Gen2 ports (Include 1 Type-C) (2) USB 2.0 (1) Microphone-In (1) Line-Out (1) Power-On button (1) Power LED (1) HDD LED BACK PANEL (2) RJ45 LAN port w/LED (2.5G (1) HDMI port (1) Display port (2) USB 3.2 Gen1 ports (2) USB 3.2 Gen2 ports (1) USB 4.0 (20G, Type-C, with DP) (1) RS232 (1) RS232/RS422/RS485 (1) External 4pin header (1) DC-in (1) Kensington lock DRIVE BAYS (1) 2.5' HDD / SSD bay DIMENSIONS 190(L) x 165(W) x 43(H) mm POWER 120W Power Adapter Input:100- 240V AC 19V 6.32A ACCESSORIES XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 120W adapter EXPANSION SLOT (1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket OS SUPPORT Windows 11 64 bit O.S Linux REMARK RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide. NET WEIGHT NW :1.32 (kg) OPERATING TEMPERATURE 0℃~50℃

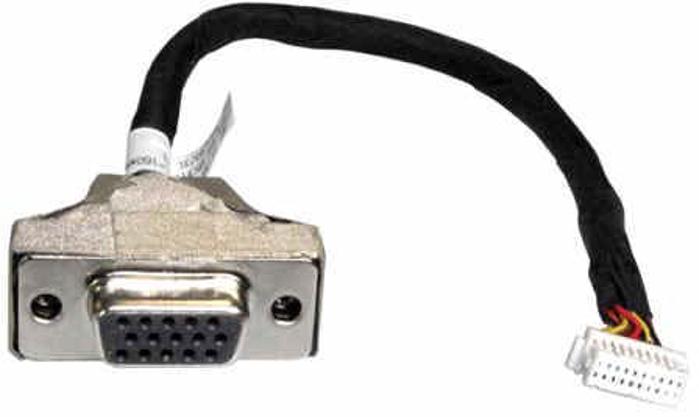

Brand: Shuttle

Category: Systems - NUC/SFF/AIO / Accessories

SKU: PVG01

Description: PVG01 - DS81, DH110, DS87, DH170, XH81V VGA port expansion kit for Shuttle Slim-PCs The PVG01 adapter equips compatible Shuttle Slim PCs with an analog VGA output. For DS81 this also means only one serial interface (COM 1) can be used afterwards. Note: Slim PCs with H81 chipset support up to two displays at the same time so that only two out of the available video outputs can be used. Scope of delivery: - Adapter PVG01 - Installation guide - Two screws INTERNAL ADAPTER CABLE Cable length 160 mm Back panel connector 15-pin Mini D-Sub female socket (DE15) Internal connector Subminiature 2x10-pin, 1 mm Pitch Size, Female Compatibility Compatible to Shuttle Slim PC DS81, DS87, DH170, XH81, XH81V
