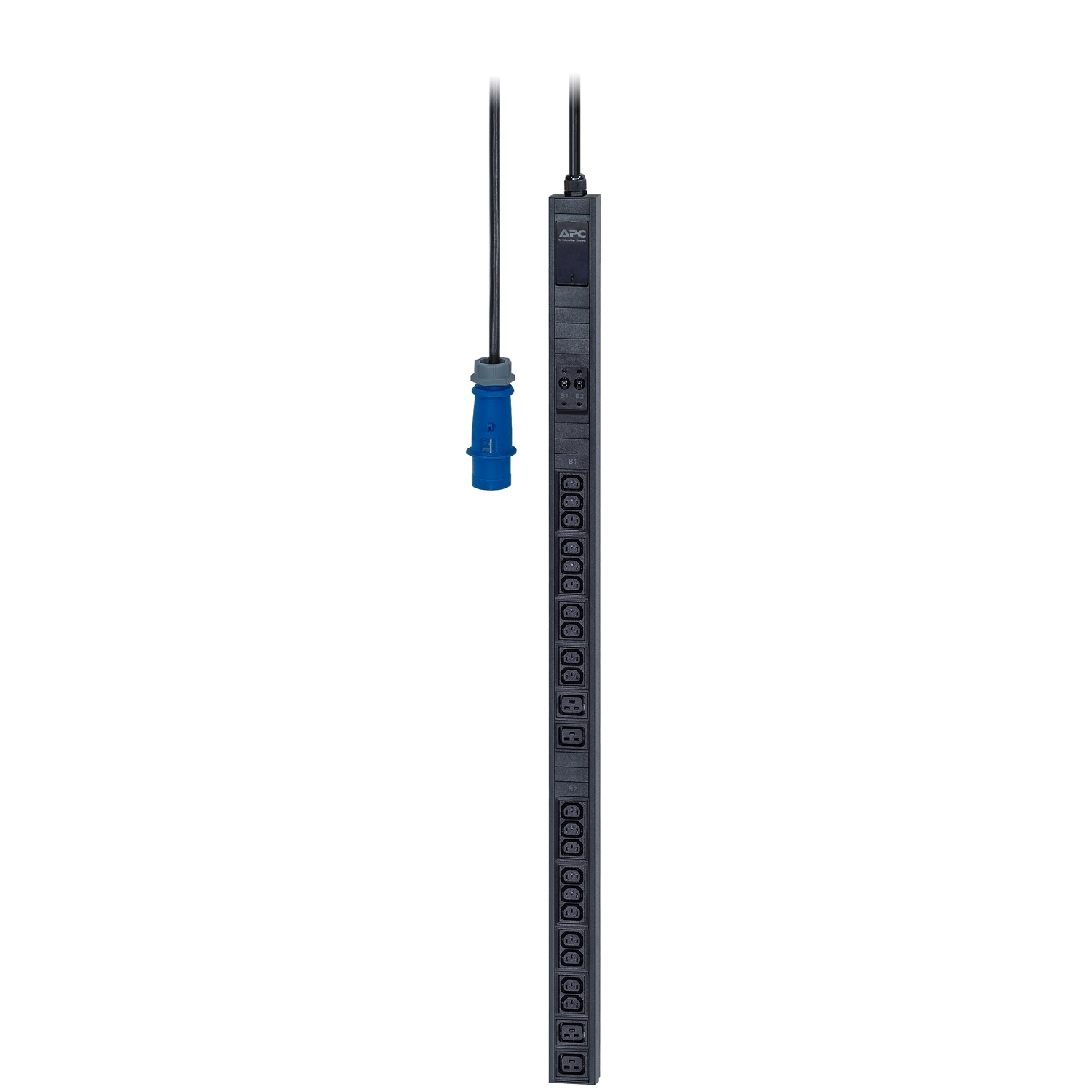

Brand: APC

Category: Data Racks & Accessories / Rackmount PDU

SKU: EPDU1132B

Description: APC Easy Rack Basic PDU, 0U Vertical, 230V/32A 2P+E Input, 1 Phase, 7.4kW, 4x IEC C19 & 20x IEC C13 Outlets APC Easy Basic Rack PDU EPDU1132B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current).The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Saves time and money during installation by using one branch whip and standard connections. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Main Input Voltage: 200 V/208 V/230 V PDU type: Basic Main Output Voltage: 230 V Input Connection Type: IEC 60309 32 A 2P + E Number of rack unit: 0U Cable length: 3.00 m Number of cables: 1 Provided equipment- Installation guide, Toolless mounting kit, Vertical mounting brackets Colour: Black Input current limits: 32 A Load capacity: 7360 VA Network frequency: 50/60 Hz Number of power socket outlets: 20 IEC 60320 C13/4 IEC 60320 C19 Product certifications: CE/TÜV Ambient air temperature for operation: 0…45 °C Relative humidity: 5…95 % Operating altitude: 0...10000 ft Ambient air temperature for storage: -25…65 °C Storage Relative Humidity: 5…95 % Storage altitude: 0.00…9144.00 m Mounting mode- Rack mounted Compatible Racks- AR3100, AR3100W, AR3105

Brand: APC

Category: Data Racks & Accessories / Rackmount PDU

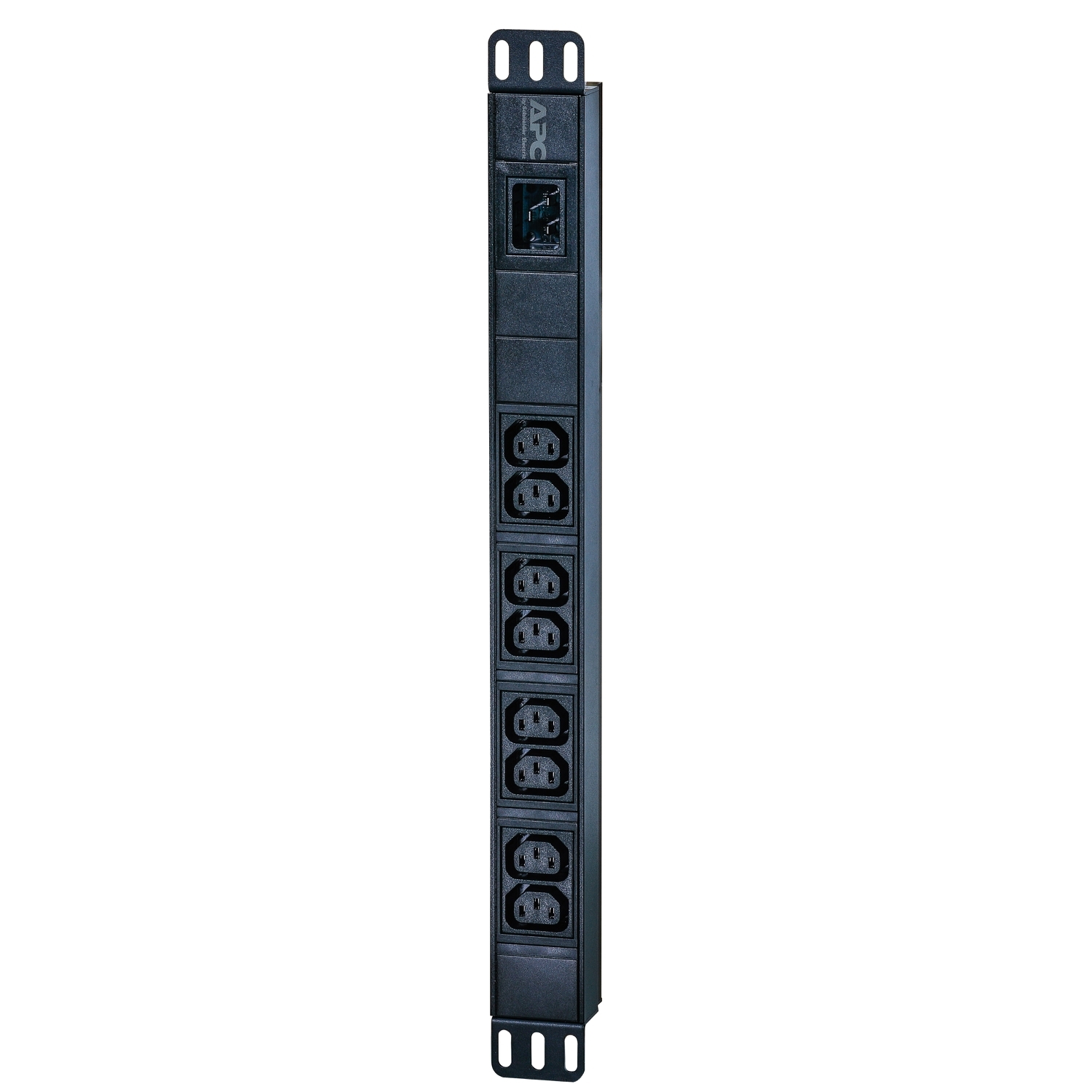

SKU: EPDU1016B

Description: APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet APC Easy Basic Rack PDU EPDU1016B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is horizontal rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1016B has IEC-320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. The packaging includes cable, installation guide, user manual and rack mounting brackets for quick and easy mounting inside the rack. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections. Colour Black PDU type Basic Cord length 2.50 m Provided equipment- Installation guide, Rack mounting brackets, User manual, Cable Input Voltage 200 V 208 V 230 V Output Voltage 208 V 230 V Input current limits 16 A Load capacity 3680 VA Network frequency 50/60 Hz Total number of outlets 8 IEC 60320 C13 product certifications CE, TÜV Ambient air temperature for operation -5…45 °C Relative humidity 5…95 % Operating altitude 0...10000 ft Ambient air temperature for storage -25…65 °C Storage Relative Humidity 5…95 % Storage altitude 0.00…15240.00 m Mounting mode- Rack mounted Compatible Racks- AR3100, AR3100W, AR3003, AR3006, AR3104, AR3103

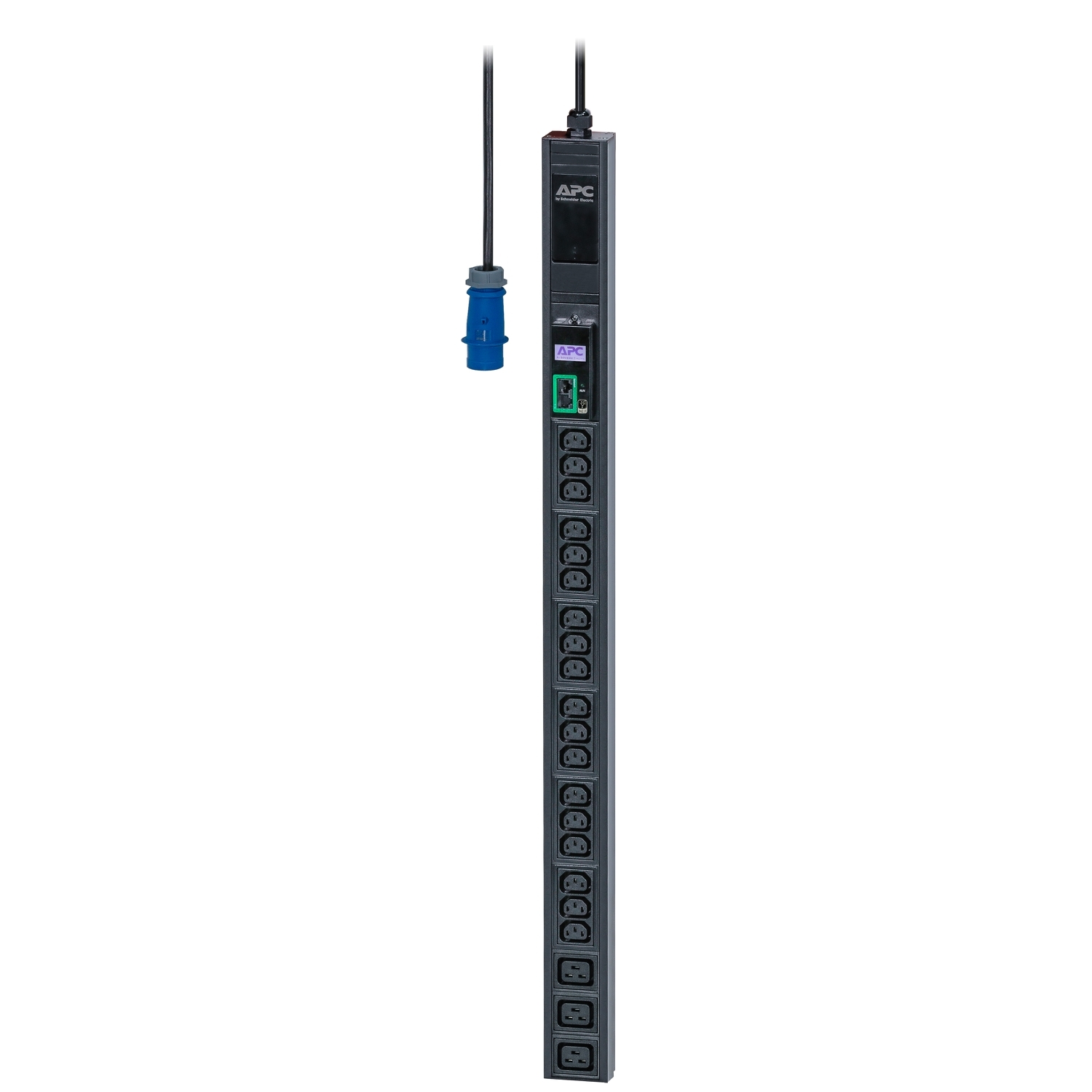

Brand: APC

Category: Data Racks & Accessories / Rackmount PDU

SKU: EPDU1116M

Description: APC Easy Rack PDU, Metered, 0U, 1 Phase, 3.7kW, 230V, 16A, 18 x C13 and 3 x C19 outlets, IEC60309 2P+E inlet APC Easy Metered Rack PDU EPDU1116M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1116M has IEC 60309 16A 2P+E type inlet, eighteen IEC C13 and three IEC C19 type outlet sockets. This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Colour Black PDU type Metered Cord length 3.00 m Number of cables 1 Provided equipment- Installation guide, User manual, Vertical mounting brackets Input Voltage 200 V 208 V 230 V Rack units 0U Mounting position Vertical Input current limits 16 A Load capacity 3680 VA Network frequency 50/60 Hz Total number of outlets 18 IEC 60320 C13 3 IEC 60320 C19 Product certifications CE TÜV Ambient air temperature for operation -5…45 °C Relative humidity 5…95 % Operating altitude 0...10000 ft Ambient air temperature for storage -25…65 °C Storage Relative Humidity 5…95 % Storage altitude 0.00…15240.00 m Mounting mode- Rack mounted Compatible Racks- AR3100, AR3100W, AR3104, AR3105

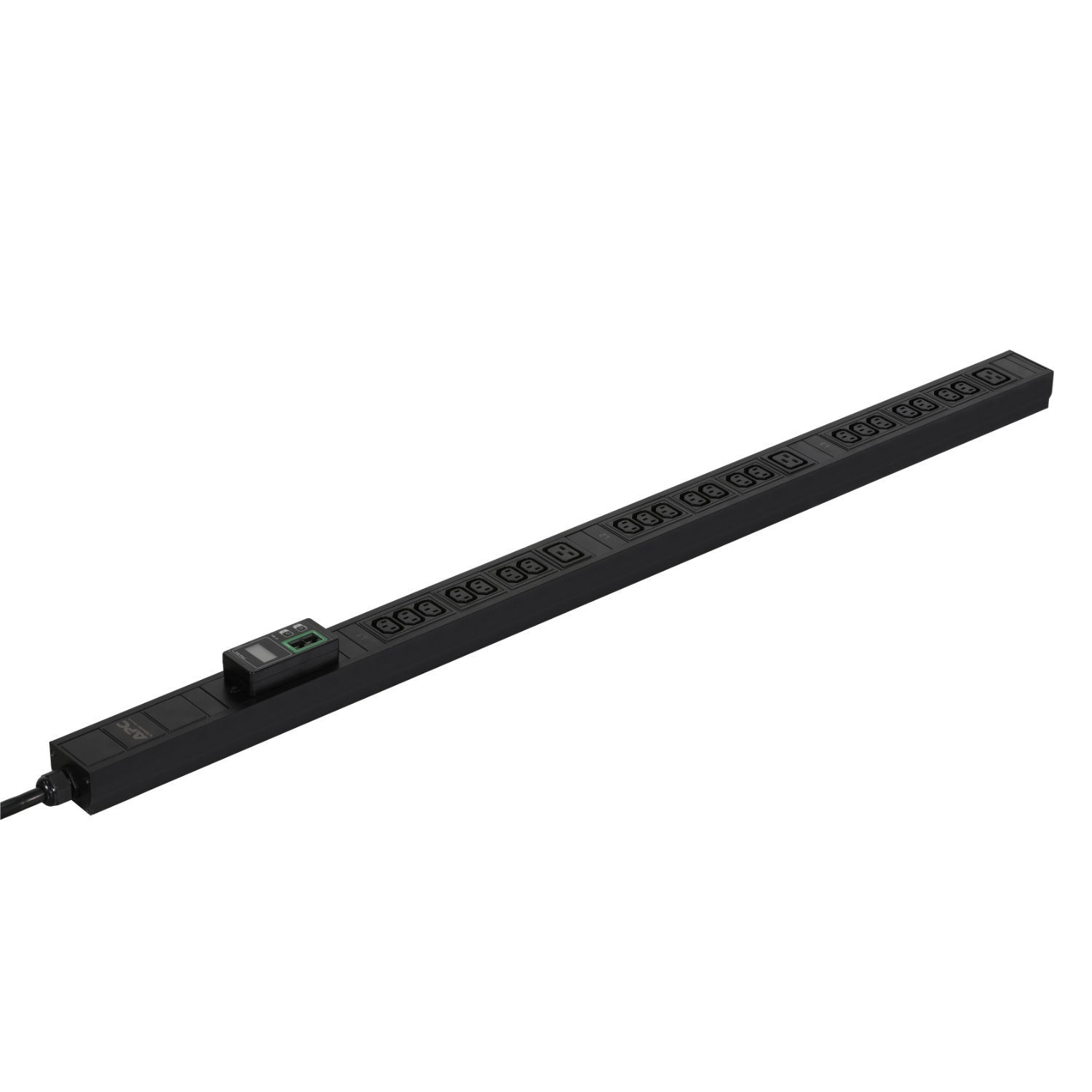

Brand: APC

Category: Data Racks & Accessories / Rackmount PDU

SKU: EPDU1216M

Description: APC Easy Rack PDU, Metered, 0U, 3 Phase, 11kW, 230V, 16A, 21 x C13 and 3 x C19 outlets, IEC60309 3P+N+PE inlet APC Easy Metered Rack PDU EPDU1216M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1216M has IEC 309 16A 3P+N+E type inlet, Twenty one IEC C13 and three IEC C19 type outlet sockets. This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Colour Black PDU type Metered Cord length 1.98 m Number of cables 1 Provided equipment- Installation guide Toolless mounting kit, Vertical mounting brackets Input current limits 16 A Load capacity 11000 VA Network frequency 50/60 Hz Total number of outlets 21 IEC 60320 C13 3 IEC 60320 C19 Ambient air temperature for operation -5…45 °C Relative humidity 5…95 % Operating altitude 0...10000 ft Ambient air temperature for storage -20…65 °C Storage Relative Humidity 5…95 % Storage altitude 0.00…4572 Mounting mode- Rack mounted Compatible Racks- AR3100, AR3100W, AR3105

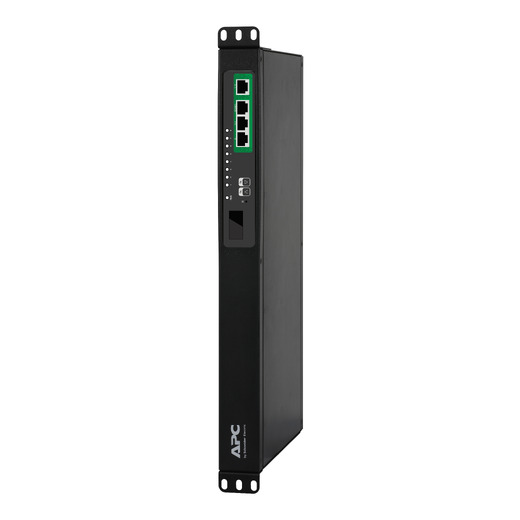

Brand: APC

Category: Data Racks & Accessories / Rackmount PDU

SKU: EPDU1016S

Description: APC Easy Rack PDU, Switched, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet APC Easy Switched Rack PDU EPDU1016S is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment. Eliminates the need to replace products already installed in the field when new features are released. Connect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU Quickly and easily upgrade firmware via network download for future product enhancements. Allows users to configure the sequence in which power is turned on or off for each outlet. The packaging includes cable, installation guide and horizontal mounting brackets for quick and easy mounting in the enclosure. Colour Black PDU type Switched Cable length 2.50 m Provided equipment Horizontal mounting brackets Installation guide Cable Input Voltage 200 V 208 V 230 V Output Voltage 208 V 230 V Mounting location Front Rear Mounting preference No preference Input Connection Type IEC 60320 C20 Number of rack unit 1U Mounting position Horizontal Input current limits 16 A Load capacity 3680 VA Network frequency 50/60 Hz Number of power socket outlets 8 IEC 60320 C13 Ambient air temperature for operation -5…45 °C Relative humidity 5…95 % Operating altitude 0...10000 ft Ambient air temperature for storage -25…65 °C Storage Relative Humidity 5…95 % Storage altitude 0.00…15240.00 m Compatible Racks- AR3100, AR3100W, AR3003, AR3006, AR3104, AR3103

Brand: APC

Category: Data Racks & Accessories / Rackmount PDU

SKU: AP6020A

Description: APC NetShelter Basic Rack PDU, 0U, 1PH, 3.3kW, 100-240V 20A or 200-240V 16A, 13 C13 outlets, C20 inlet Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment. Colour Black PDU type Basic Provided equipment- Installation guide, Safety guide Input Voltage- 100 V, 120 V, 200 V, 208 V, 230 V, 240 V Rack units 1U USB compatible No Mounting position Horizontal [In] rated current 16 A Permissible voltage 100…240 V Max line current 20 A Input current limits 20 A Load capacity 3300 VA Network frequency 50/60 Hz Total number of outlets 13 IEC 60320 C13 Product certifications- cUL listed, CE, EAC, IRAM, PSE, UL listed, VDE Mounting mode- Not rack mountable Compatible Racks- AR3100, AR3003, AR3006, AR3103, AR3104, AR3105, ER6202, ER8222

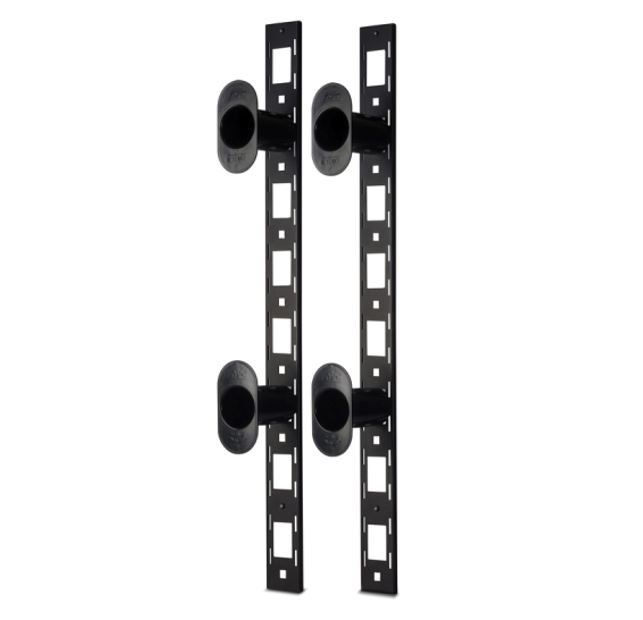

Brand: APC

Category: UPS & Power Board / UPS Accessories

SKU: AR8443A

Description: APC NetShelter Cable Management, Vertical Cable Manager, Fiber Organizer, Black, 86 x 766 x 106 mm Number of rack unit 0U Mounting mode- Rack mounted Compatible Racks- AR2480, AR3100, AR3100W, AR3104, AR3105, AR3105W, AR3107, AR3130, AR3140, AR3140W, AR3150, AR3150W, AR3155, AR3155W, AR3157, AR3200, AR3300, AR3300W, AR3305, AR3305W

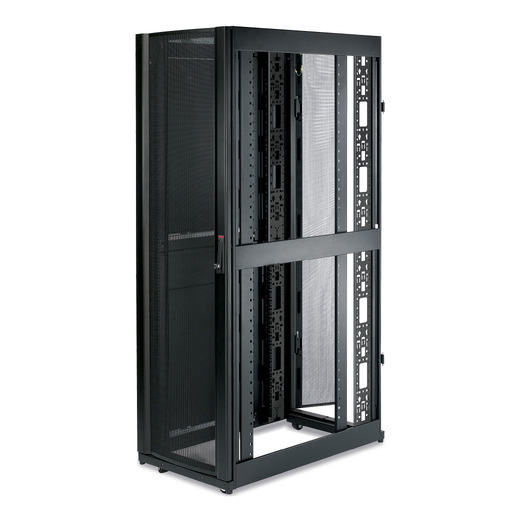

Brand: APC

Category: Data Racks & Accessories / Full Height

SKU: AR3100

Description: APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991H x 600W x 1070D mm An industry standard server rack with height designed to easily fit through standard doorways. Ready for medium to high density environments. Product or component type Rack enclosure Number of rack unit 42U Provided equipment- Baying hardware, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting hardware, Pre-installed casters, Side panels Mounting mode- Not rack mountable Compatible PDU- AP7526, APDU10150ME, APDU10151ME, AP6003A, APDU10150SW Compatible Accessories- AR8132A, AR7000A, AR7100, AR7209, AR7714, AR7201A Compatible Airflow- AR8136BLK, AR8108BLK, AR8136BLK200, AR7708, AR8101BLK Compatible Cable Management- AR8429, AR8425A, AR8602A, AR8600A, AR8612 Compatible Mounting- AR7503, AR8100, AR7711, AR8006A, AR8005, AR8400 Compatible Options- AR7301, AR7305A, AR8163ABLK, AR8162ABLK, AR8166ABLK Compatible Shelving- AR8122BLK, AR8105BLK, AR8123BLK, AR8128BLK, AR8127BLK Compatible Stabilization- AR7701, AR7701A-S, AR7700, AR7605

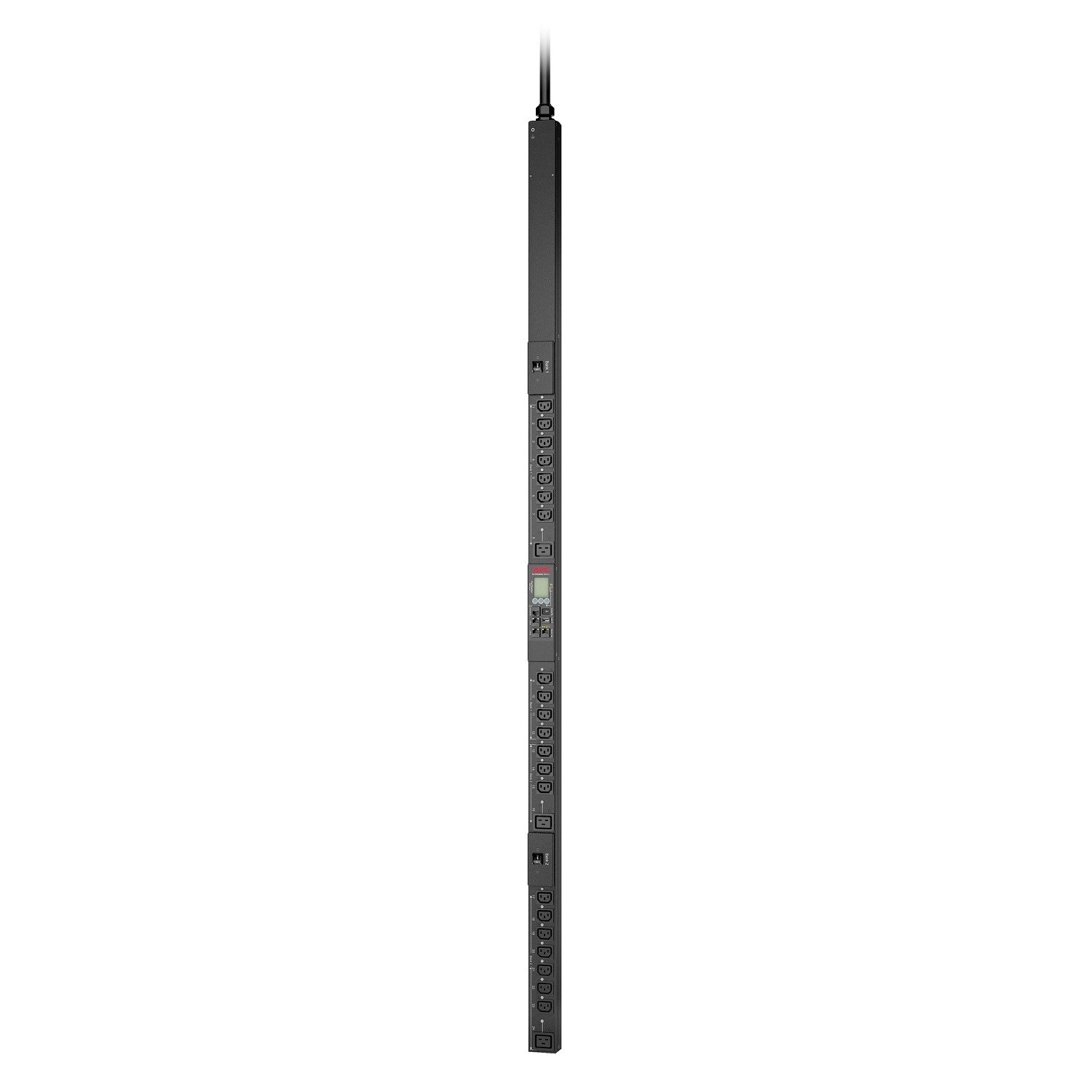

Brand: APC

Category: Data Racks & Accessories / Rackmount PDU

SKU: APDU9953

Description: APC Rack PDU 9000 Switched, ZeroU, 32A, 230V, (21) C13 & (3) C19 Colour Black PDU type Switched Cord length 3.05 m Number of cables 1 Provided equipment- Installation guide, Rack mounting brackets, Safety guide Input Voltage 200 V, 208 V, 230 V Rack units 0U USB compatible No Mounting position Vertical communication port protocol SNMP, Redfish Permissible voltage 220…240 V Max line current 32 A Input current limits 32 A Load capacity 7400 VA Network frequency 50/60 Hz Total number of outlets 21 IEC 60320 C13, 3 IEC 60320 C19 Communication network type 10/100/1000BASE-T Ambient air temperature for operation -5…60 °C Relative humidity 5…95 % Operating altitude 0...10000 ft Ambient air temperature for storage -25…65 °C Storage Relative Humidity 5…95 % Storage altitude 0.00…15240.00 m Mounting mode- Not rack mountable Compatible PDU- AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW Compatible Racks- AR3100 Compatible Mounting- AR7711 Compatible Accessories- AP9335T, AP9335TH
