Brand: Gigabyte

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: B860 A ELITE WF7 ICE 1.0

Description: Gigabyte M/B B860 A ELITE WF7 ICE 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 2x HDMI, 3 x PCI Express x16, 3 x M.2, 4 x SATA, 6 x USB 3.2 CPU LGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel ® B860 Express Chipset Memory Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, datarate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version(Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2) Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Brand: Gigabyte

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: B860 EAGLE WIFI6E 1.0

Description: Gigabyte M/B B860 EAGLE WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 3 x PCI Express x16, 3 x M.2, 4 x SATA, 3 x USB 3.2 CPU LGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel ® B860 Express Chipset Memory Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4) Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB headers - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers

Brand: Gigabyte

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: B860M A ELITE WIFI6E 1.0

Description: Gigabyte M/B B860M A ELITE WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 2x HDMI, 2 x PCI Express x16, 3 x M.2, 4 x SATA, 8x USB 3.2 CPU LGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel ® B860 Express Chipset Memory Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Brand: Gigabyte

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: B860M A ELT WF6E ICE

Description: Gigabyte M/B B860M A ELT WF6E ICE 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 2x HDMI, 2 x PCI Express x16, 3 x M.2, 4 x SATA, 9x USB 3.2 CPU LGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel ® B860 Express Chipset Memory Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Brand: ASUS

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: B860M AYW GAMING WIFI

Description: ASUS B860M AYW GAMING WIFI Micro-ATX Motherboard Up to 128GB DDR5 (2x Slots), 1 x PCIe 4.0, 2 x M.2 slots, WiFi 6, ASUS B860 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). The B860M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. SPECIFICATION Model B860M AYW GAMING WIFI Chipset Intel® B860 Chipset BIOS 256(128+128) Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later) CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Memory 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x HDMITM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel® B860 Chipset 2 x PCIe 4.0 x1 slots - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3* * The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Form Factor micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4cm x 22.2cm)

Brand: ASUS

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: PRIME B860-PLUS WIFI-CSM

Description: ASUS PRIME B860-PLUS WIFI-CSM ATX Motherboard, 2x M.2 slots, 4x SATA, WiFi 6E ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. SPECIFICATION Model PRIME B860-PLUS WIFI-CSM Chipset Intel® B860 Chipset BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later) CPU Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Memory 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI™ port*** 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** Supports max. 4K@120Hz as specified in DisplayPort 1.4. ***** VGA resolution support depends on processors' or graphic cards' resolution. ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Expansion Slots Intel® Core™ Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot (PCIEX16(G5)) Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode) 3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode) - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later ** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Brand: ASUS

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: PRIME H810M-A WIFI-CSM

Description: ASUS PRIME H810M-A WIFI-CSM Micro-ATX Motherboard Up to 128GB DDR5 (2x Slots), 1 x PCIe 4.0 x16, 2 x M.2, 4 x SATA, WiFi 6, HDMI, DP SPECIFIFCATION Model PRIME H810M-A WIFI-CSM CPU Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H810 Chipset Memory 2 x DIMM slots, max. 128GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel® H810 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Ethernet 1 x Intel® 1Gb Ethernet port* ASUS LANGuard *With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3. Wireless & Bluetooth Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3* * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS Operating System Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) Form Factor micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)

Brand: ASUS

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: PRIME Z890M-PLUS WIFI-CSM

Description: ASUS PRIME Z890M-PLUS WIFI-CSM LGA1851 mATX Motherboard, DDR5 256GB, PCIe 5.0, 3×M.2, 2.5GbE, Wi-Fi 7, USB 20Gbps Type-C ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. SPECIFICATIONS Model PRIME Z890M-PLUS WIFI-CSM CPU Supports Intel® Core™ Ultra Processors(Series 2), LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. Chipset Intel® Z890 Chipset Memory 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile III(AEMPIII) Graphics 1 x DisplayPort** 1 x HDMI™ port*** 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. ****Supports max. 4K@120Hz as specified in DisplayPort 1.4. ***** VGA resolution support depends on processors' or graphic cards' resolution. Ethernet 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Special Features ASUS 5X PROTECTION III ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS Operating System Windows 11 (22H2 & later) Form Factor mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Brand: ASUS

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: PRIME Z890-P WIFI-CSM

Description: ASUS PRIME Z890-P WIFI-CSM LGA1851 ATX Motherboard 192GB, DDR5, 1 x PCIe 5.0 x16 slots, 4 x M.2 slots, 4 x SATA 6Gb/s ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. SPECIFICATION Model PRIME Z890-P WIFI-CSM CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z890 Chipset Memory 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMITM port*** 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. **** In DP alt mode, supports up to UHBR20. ***** VGA resolution support depends on processors' or graphic cards' resolution. ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Expansion Slots Intel® Core™ Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot Intel® Z890 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. Ethernet 1 x Realtek 2.5Gb Ethernet ASUS LANGuard BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows 11 (22H2 & later) Form Factor ATX Form Factor 12 inch x 9.6inch ( 30.5 cm x 24.4 cm )

Brand: ASUS

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: PROART Z890-CREATOR WIFI

Description: ASUS ROG MAXIMUS Z890 APEX LGA1851 ATX Motherboard 96GB, 2x DDR5, 2 x PCIe 5.0 x16 slots, 6 x M.2 slots, 4 x SATA 6Gb/s The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt™ 5 ports, 10G and 2.5G Ethernet, and WiFi 7. This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within. CPU Support Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z890 Chipset Memory 4 x DIMM slots, max. 192GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture 1 x HDMI™ port** 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** 1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1 *** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in. *** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in. Intel® Core™ Ultra Processors (Series 2) * 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel® Z890 Chipset *1 x PCIe 4.0 x16 slot (supports x4 mode) ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. ** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled. Ethernet 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard Back Panel I/O Ports 2 x Thunderbolt™ 5 USB Type-C® ports 1 x Thunderbolt™ 4 USB Type-C® port 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI™ port 1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headersPower Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over voltage jumper 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x RTC Battery header 1 x Thermal Sensor header

Brand: ASUS

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: ROG STRIX B860-A GAMING WIFI

Description: ASUS ROG STRIX B860-A GAMING WIFI LGA1851 ATX Motherboard 256GB, DDR5, 1 x PCIe 5.0, 4 x M.2 slots, 4 x SATA. WiFi 7, 1 x HDMI, 1 x DP With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style. SPECIFICATION Model ROG STRIX B860-A GAMING WIFI CPU Support Intel® Core™ Ultra Processors (Series 2)* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B860 Chipset Memory 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8600+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI™ port*** 1 x USB4® (20Gbps) ports support USB Type-C® display outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. **** In USB4® mode, supports up to 4K@60Hz, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 1.4 specs. In DP alt mode, supports up to UHBR10. ***** VGA resolution support depends on processors' or graphic cards' resolution. ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Expansion Slots Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)* * M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled. Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, UEFI PXE Operating System Windows 11 (22H2 & later) Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Brand: ASUS

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: ROG STRIX B860-F GAMING WIFI

Description: ASUS ROG STRIX B860-F GAMING WIFI LGA1851 ATX Motherboard 256GB, DDR5, 1 x PCIe 5.0, 4 x M.2 slots, 4 x SATA, WiFi 7, 1 x HDMI, 1 x DP With NPU boosting and cutting-edge AI solutions, the ROG STRIX B860-F Gaming WiFi supports advanced AI PC applications. Featuring Thunderbolt™ 4, PCIe® 5.0, and Aura Sync lighting, it offers ultra-fast data transfer speeds, exceptional connectivity, and a versatile aesthetic that suits both bold and subtle styles. SPECIFICATION Model ROG STRIX B860-F GAMING WIFI CPU Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2) Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B860 Chipset Memory 4 x DIMM slots, max. 256GB, DDR5 Support up to 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) *Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI™ port*** 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4. *** Supports 8K@60Hz with DSC as specified in HDMI 2.1. **** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. ***** VGA resolution support depends on processors' or graphic cards' resolution. ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Expansion Slots Intel® Core™ Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports** * M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with SSD device, PCIEX16(G4) will be disabled. ** Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows® 11 (22H2 & later) Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Brand: ASUS

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: TUF GAMING B860M-PLUS WIFI

Description: ASUS TUF GAMING B860M-PLUS WIFI LGA1851 mATX Motherboard 256GB, DDR5, 1 x PCIe 5.0, 3 x M.2 slots, 4 x SATA, WiFi 7, 1 x HDMI, 1 x DP ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand. SPECIFICATION Model TUF GAMING B860M-PLUS WIFI Chipset Intel® B860 Chipset BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows 11 (22H2 & later) CPU Support Intel® Core™ Ultra Processors (Series 2) ,LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *Refer to https://www.asus.com/support/download-center/ for CPU support list. **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Memory 4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI™ port*** 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. *****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Expansion Slots Intel® CoreTM Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Form Factor mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Brand: ASUS

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: TUF GAMING B860-PLUS WIFI

Description: ASUS TUF GAMING B860-PLUS WIFI LGA1851 ATX Motherboard 256GB, DDR5, 1 x PCIe 5.0, 3 x M.2 slots, 4 x SATA, WiFi 7, 1 x HDMI, 1 x DP ASUS TUF GAMING B860-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand. SPECIFICATION Model TUF GAMING B860-PLUS WIFI News & Updates Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below: •Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. Please visit our GLOBAL website to check and download the latest updates. CPU Support Intel® Core™ Ultra Processors(Series 2) , LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B860 Chipset Memory 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*' Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. **Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI™ port*** 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ****Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***** VGA resolution support depends on processors' or graphic cards' resolution. ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Expansion Slots Intel® Core™ Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)* 1 x PCIe 4.0 x1 slot* * PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows 11 (22H2 & later) Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Brand: Gigabyte

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: H810M S2H

Description: Gigabyte H810M S2H Intel LGA 1851 ATX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 1x M.2, 4x SATA, 3x USB 3.2, 3x USB 2.0 Specification: CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors Chipset Intel® H810 Express Chipset Memory Support for DDR5 6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz * Support for DisplayPort 2.1 version. - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz Expansion Slots 1 x PCI Express x16 slot - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface 1 x M.2 connector 4 x SATA 6Gb/s connectors USB Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

Brand: Gigabyte

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: B860 GAMING X WIFI6E

Description: Gigabyte M/B B860 GAMING X WIFI6E, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 3 x PCI Express x16, 3 x M.2, 4 x SATA, 5 x USB 3.2 CPU LGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel ® B860 Express Chipset Memory Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) - Support for up to triple-display at the same time LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Intel ® Wi-Fi 6E AX211 (PCB rev. 1.0) Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1,PCIEX1_2) Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers)

Brand: Gigabyte

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: B860M DS3H WIFI6E

Description: Gigabyte M/B B860M DS3H WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 4 x PCI Express x16, 2 x M.2, 4 x SATA, 5x USB 3.2 CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel® B860 Express Chipset Memory Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3) Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers

Brand: Gigabyte

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: B860M EAGLE WIFI6 1.0

Description: Gigabyte M/B B860M EAGLE WIFI6 1.0, Intel ® B860, 2 x DDR5 up to 128 GB, 1x HDMI, 2 x PCI Express x16, 2 x M.2, 4 x SATA, 5x USB 3.2 CPU LGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel ® B860 Express Chipset Memory Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Realtek® Wi-Fi 6 RTL8851BE Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers

Brand: Gigabyte

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: B860M GAMING X WIFI6E

Description: Gigabyte M/B B860M GAMING X WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 2 x PCI Express x16, 2 x M.2, 4 x SATA, 6x USB 3.2 CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel® B860 Express Chipset Memory Support for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Intel® Wi-Fi 6E AX211 (PCB rev. 1.0/2.0) Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers)

Brand: Gigabyte

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: Z890 A ELITE WIFI7 1.0

Description: Gigabyte Z890 AORUSELITE WF7 Intel LGA 1851 ATX Motherboard, 4x DDR5 ~256GB, 3x PCI-E x16, 4x M.2, 4x SATA, 5x USB 3.2, 1x USB-C, 4x USB 2.0 Specification: CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU Chipset Intel® Z890 Express Chipset Memory 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Audio Realtek® ALC1220 CODEC LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Back Panel Connectors 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks Unique Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Form Factor ATX Form Factor; 30.5cm x 24.4cm

Brand: Gigabyte

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: Z890 EAGLE WIFI7

Description: Gigabyte Z890 EAGLE WIFI7 Intel LGA 1851 ATX Motherboard, 4x DDR5 ~256GB, 3x PCI-E x16, 4x M.2, 4x SATA, 5x USB 3.2, 1x USB-C, 4x USB 2.0 Specification: CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU Chipset Intel® Z890 Express Chipset Memory 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Back Panel Connectors 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks Unique Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Form Factor ATX Form Factor; 30.5cm x 24.4cm

Brand: Gigabyte

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: Z890 UD WIFI6E

Description: Gigabyte Z890 UD WIFI6E Intel LGA 1851 ATX Motherboard, 4x DDR5 ~256GB, 4x PCI-E x16, 3x M.2, 4x SATA, 5x USB 3.2, 1x USB-C, 4x USB 2.0 Specification: CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU Chipset Intel® Z890 Express Chipset Memory 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks Unique Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Form Factor ATX Form Factor; 30.5cm x 24.4cm

Brand: MSI

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: B860M GAMING PLUS WIFI

Description: MSI B860M GAMING PLUS WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16, 3x M.2, 4x SATA, 6x USB 2.0, Intel® Killer™ BE1750x Wi-Fi 7 Chipset INTEL B860 CPU Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Onboard Graphics 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Slot 4x PCI-E x16 slot Storage 3x M.2 4x SATA 6G USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) WIRELESS LAN & BLUETOOTH Intel® Killer™ BE1750x Wi-Fi 7 OPERATING SYSTEM Support for Windows® 11 64-bit PCB Info mATX 243.84mmx243.84mm

Brand: MSI

Category: Motherboards / Intel Socket 1851 (15th Gen)

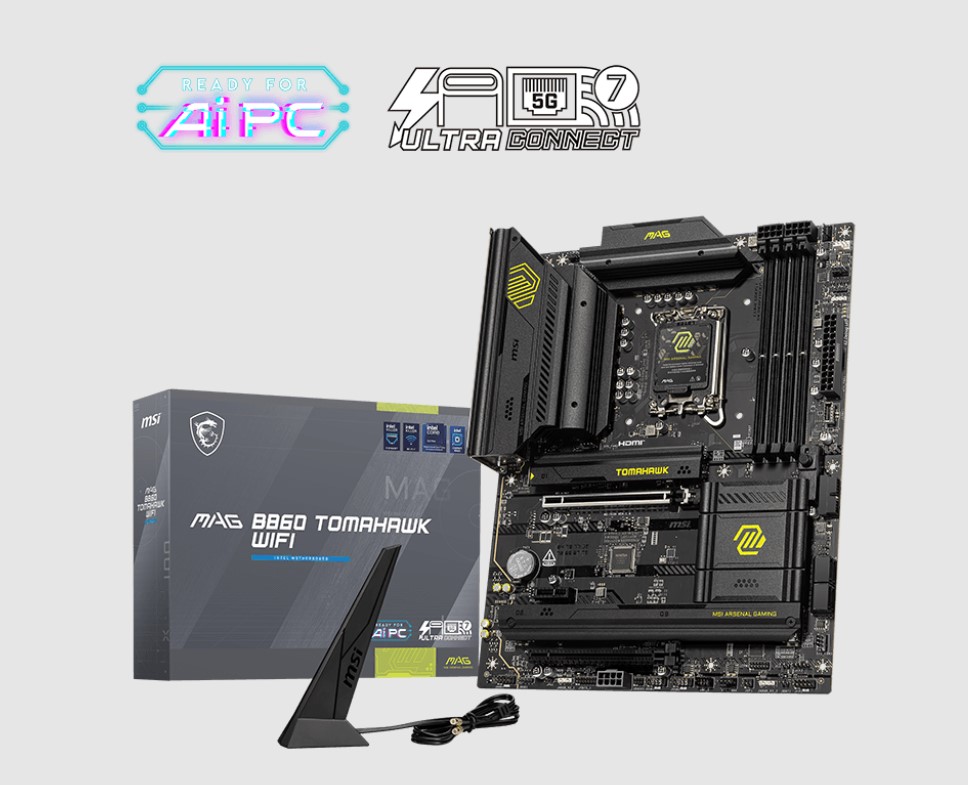

SKU: MAG B860 TOMAHAWK WIFI

Description: MSI MAG B860 TOMAHAWK WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 2x PCI-E x16 slot, 1x PCI-E x1, 3x M.2, 4x SATA 6G, 8x USB 2.0. Intel® Killer™ BE1750 Chipset INTEL B860 CPU Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Onboard Graphics 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* 1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* Slot 2x PCI-E x16 slot 1x PCI-E x1 slot Audio Realtek® ALC897 7.1-Channel High Definition Audio Storage 3x M.2 4x SATA 6G USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 40Gbps Type C (Rear) WIRELESS LAN & BLUETOOTH Intel® Killer™ BE1750x Wi-Fi 7 LED FEATURE 4x EZ Debug LED OPERATING SYSTEM Support for Windows® 11 64-bit PCB Info ATX 243.84mmx304.8mm

Brand: MSI

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: MAG B860M MORTAR WIFI

Description: MSI MAG B860M MORTAR WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 1x PCI-E x16, 1x PCI-E x4, 3x M.2, 4x SATA 6G, 8x USB 2.0, Intel Killer BE1750x Wi-Fi 7 Chipset INTEL B860 CPU Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Onboard Graphics 1x HDMI™ Support HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz*/ ** 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz*/ ** 1x Type-C DisplayPort Slot 1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Storage 3x M.2 4x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices LAN Intel® Killer™ E5000 5Gbps LAN Onboard Thunderbolt Thunderbolt Resource CPU 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) WIRELESS LAN & BLUETOOTH Intel® Killer™ BE1750x Wi-Fi 7 OPERATING SYSTEM Support for Windows® 11 64-bit PCB Info mATX 243.84mmx243.84mm

Brand: MSI

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: PRO B860M-A WIFI

Description: MSI PRO B860M-A WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16 slot, 3x M.2, 4x SATA, 6x USB 2.0, Intel® Wi-Fi 7 Chipset INTEL B860 CPU Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Onboard Graphics 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* Slot 4x PCI-E x16 slot Audio Realtek® ALC897 7.1-Channel High Definition Audio Storage 3x M.2 4x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Onboard Thunderbolt 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) LAN Realtek® 8126-CG 5G LAN WIRELESS LAN & BLUETOOTH Wi-Fi 7 Supports Bluetooth® 5.4**, MLO, 4KQAM LED FEATURE 4x EZ Debug LED OPERATING SYSTEM Support for Windows® 11 64-bit PCB Info mATX 243.84mmx243.84mm

Brand: MSI

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: PRO B860-P WIFI

Description: MSI PRO B860-P WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16, 3x M.2, 4x SATA, 8x USB 2.0, Intel® Wi-Fi 7 Chipset INTEL B860 CPU Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM Onboard Graphics 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G Onboard Thunderbolt 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 40Gbps Type C (Rear) LAN Realtek® 8126 5Gbps LAN WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 7 OPERATING SYSTEM Support for Windows® 11 64-bit PCB Info ATX 243.84mmx304.8mm

Brand: MSI

Category: Motherboards / Intel Socket 1851 (15th Gen)

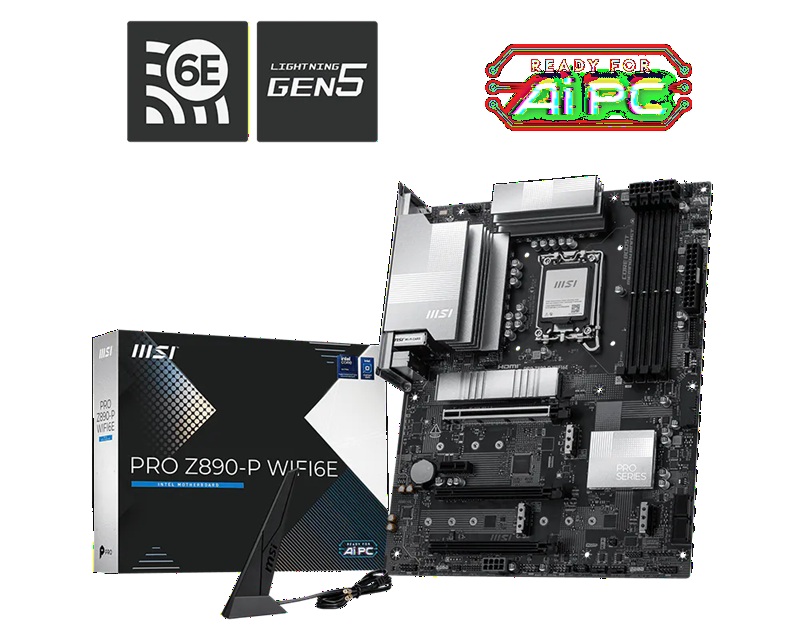

SKU: PRO Z890-P WIFI6E

Description: MSI PRO Z890-P WIFI6E, LGA1851, Z890, DDR5 9200+, PCIe5.0, 4xM.2, 5G LAN, WiFi 6E, BT5.3, USB 20Gbps, HDMI2.1/DP1.4 PRO Z890-P WIFI6E offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 6E with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors. SPECIFICATION Model Name PRO Z890-P WIFI6E CPU Support Support Intel® Core™ Ultra Processors (Series 2) CPU Socket LGA 1851 Chipset Intel® Z890 Chipset Expansion Slots 1x PCIe 5.0 x16 slot 2x PCIe 4.0 x4 slots 1x PCIe 4.0 x1 slot Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5 - 9200+ MT/s (OC) Storage 1x M.2 Gen5 x4 128Gbps slot, 3x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gbps ports USB ports 1x USB 20Gbps (1 Type-C), 2x USB 10Gbps (1 Type-A + 1 Type-C), 6x USB 5Gbps (6 Type-A) 8x USB 2.0 LAN Realtek® 8126 5G LAN WiFi / BT Wi-Fi 6E solution, Bluetooth 5.3 Audio 8-Channel (7.1) HD Audio with Audio Boost

Brand: MSI

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: PRO Z890-S WIFI

Description: MSI PRO Z890-S WIFI, INTEL Z890, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16 slot, 3x M.2, 4x SATA, 4x USB 2.0, Intel® Wi-Fi 7 Chipset INTEL Z890 CPU Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM Onboard Graphics 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* Slot 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G USB 4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) LAN Realtek® 8125D 2.5Gbps LAN

Brand: MSI

Category: Motherboards / Intel Socket 1851 (15th Gen)

SKU: Z890 GAMING PLUS WIFI

Description: MSI Z890 GAMING PLUS WIFI Motherboard, 4x DDR5 256GB, 3x PCI-E x 16, 1x PCI-E x 1, 4x M.2, 4x SATA 6G, 3x USB 3, 2x USB-C, 4 x USB 2 Chipset INTEL Z890 CPU Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM Onboard Graphics 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* Slot 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) Storage 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) LAN Intel® Killer™ E5000 5Gbps LAN
