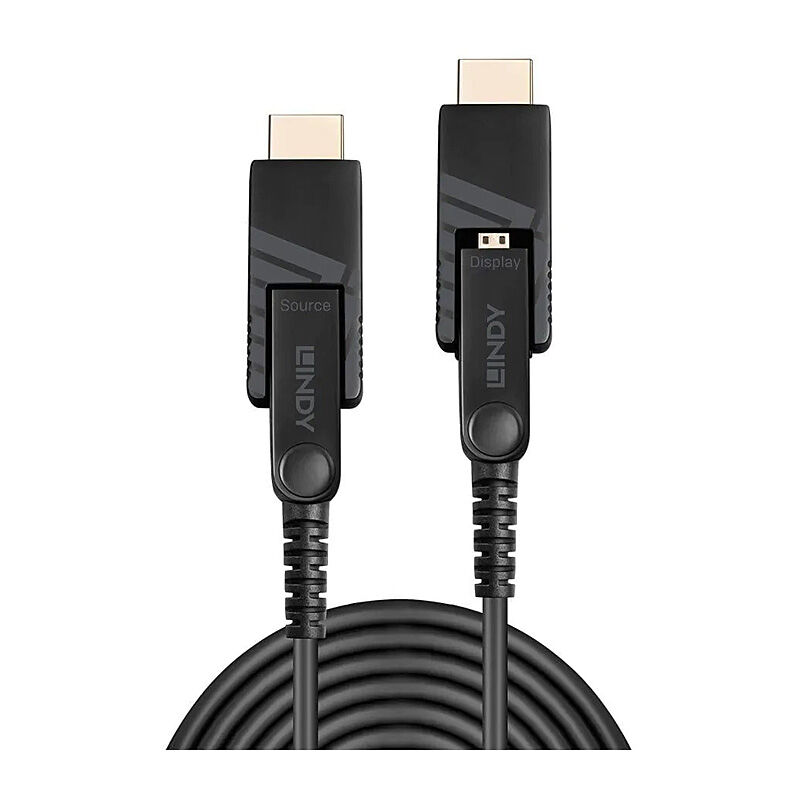

Combines copper and fibre optic cable for a hybrid, long distance HDMI, Micro-HDMI & DVI connectivity solution
Supplied as a Micro-HDMI Male to Male cable, with detachable HDMI & DVI connectors
Supports HDMI 2.0 18G resolutions up to 4K@60Hz with additional support for HDR
Premium, metal connectors
2 year warranty
Specifications
Connectors
Connector A: Micro-HDMI Male
Connector B: Micro-HDMI Male
Housing Material: Zinc Alloy
Connector Plating: Gold Plated
Pin Construction: Gold-Plated Brass
Pin Plating: Gold Plated
Dimensions (approx.) WxDxH:
Micro-HDMI Connector: 44.2×12.7×7.1 mm (1.74×0.5×0.28 in
HDMI Connector: 48.2×20×10 mm (1.9×0.79×0.39 in)
DVI Connector: 43×40×14.5 mm (1.69×1.57×0.57 in)
Cable Construction
Standard: HDMI 2.0
Colour: Black
Type: Round
Jack Diameter: 6 mm (0.24 in)
Jack Material: PVC
Conductor Material: Gold Plated Copper
Conductor Gauge: 24AWG
Shielding: Aluminium Mylar
Specifications
Supported Bandwidth: 18Gbps
Maximum Resolution: 4096×2160@60Hz 4:4:4 8bit
Nominal Attenuation: -1dB–-2dB
Minimum Bend Radius: 60 mm (2.36 in)
Operating Temperature: 0°C–50°C (32°F–122°F)
Storage Temperature: -20°C–85°C (-4°F–185°F)
Miscellaneous
Packaging Type: Carton box
Warranty (Years): 2
Certificated: CE, FCC, RoHS, REACH & California Proposition 65
38421
Lindy DisplayPort 1.4 Repeater
$109.00
0
Brand: Lindy
Category: Cables and adapters / AV Adapters
SKU: 38421
Description: LINDY DisplayPort 1.4 Repeater
Features
Extends DisplayPort 1.4 signals at distances of up to 20m
Supports resolutions up to 3840x2160@144Hz 4:4:4 12bit / 7680x4320@60Hz 4:4:4 8bit
High Dynamic Range support provides deeper blacks, brighter whites and a wider colour gamut (HDR10+)
Plug and Play Installation – No drivers required
2 Year Warranty
Specifications
V Interface: DisplayPort
Interface Standard: DisplayPort 1.4
Supported Bandwidth: 32.4 Gbps
Maximum Distance (With Multiple Units):
40m (131.23ft) - 3840x2160@60Hz
15m (49.21ft) - 7680×4320@60Hz / 3840x2160@120Hz
Maximum Input Distance (Single Unit):
10m (32.80ft) - 3840x2160@60Hz
5m (16.4ft) - 7680×4320@60Hz / 3840x2160@120Hz
Maximum Output Distance (Single Unit):
10m (32.80ft) - 3840x2160@60Hz
5m (16.4ft) - 7680×4320@60Hz / 3840x2160@120Hz
Maximum Resolution: 7680x4320@60Hz 4:4:4 8bit
Transmission Medium: 2 x DisplayPort Cable
Special Features: DPCP Compatible, HDR
Connectors
Input: DisplayPort (Female)
Output: DisplayPort (Female)
Power: USB Type C (Female)
Physical Properties
Dimensions WxHxD: 23x10x60mm (0.90x0.39x2.36in)
Housing Material: Aluminium
Net Weight: 0.041kg (0.09lb)
Operating Temperature: 5°C - 50°C (41°F - 122°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 0-80% RH (non-condensing)
Colour: Silver
Miscellaneous
Packaging Type: Polybag
Packaging Dimensions: 133x144mm (5.24x5.67in)
Gross Weight: 0.05kg (0.11lb)
Warranty (Years): 2
Product Compliance: CE, FCC, RoHS & REACH
32115
LINDY HDMI 2.0 EDID Emulator
$99.00
0
Brand: Lindy
Category: Cables and adapters / AV Adapters
SKU: 32115
Description: LINDY HDMI 2.0 EDID Emulator, continuously emulates HDMI EDID information, Supports resolutions up to 3840x2160@60Hz including HDCP 2.2 pass-through and HDR, Uses cloned data or, when this is not available, stored pre-set screen resolutions/timings
Specifications:
AV Interface: HDMI
Interface Standard: 2.0
Supported Bandwidth: 18 Gbps
Maximum Resolution: 3840x2160@60Hz 4:4:4 8Bit / 4:2:2 12Bit
Video EDID: 640 x 480p @ 60Hz | 640 x 480p @ 67Hz | 640 x 480p @ 72Hz | 640 x 480p @ 75Hz | 720 x 480p @ 60Hz | 720 x 480i at 60Hz | 720 x 400p @ 70Hz | 720 x 576p @ 60Hz | 720 x 576i @ 50Hz | 800 x 600p @ 56Hz | 800 x 600p @ 60Hz | 800 x 600p @ 72Hz | 800 x 600p @ 75Hz | 832 x 624p @ 75Hz | 1024 x 768p @ 60Hz | 1024 x 768p @ 70Hz | 1024 x 768p @ 75Hz | 280 x 1024p @ 75Hz | 280 x 720p @ 50Hz | 152 x 870p @ 75Hz | 152 x 864p @ 75Hz | 1280 x 1024p @ 60Hz | 1280 x 960p @ 60Hz | 440 x 480p @ 60Hz | 440 x 576p @ 50Hz | 440 x 900p @ 60Hz | 600 x 1200p @ 60Hz | 1680 x 1050p @ 60Hz | 920 x 1080p @ 60Hz | 1920 x 1080p at 50Hz | 920 x 1080i at 60Hz , 1920 x 1080i at 50Hz | 920 x 1200p at 60Hz | 560 x 1440p at 60Hz | 840 x 2160p at 24Hz , 3840 x 2160p at 30Hz , 3840 x 2160p at 60Hz
Audio EDID: LPCM 2-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz
HDCP Support: 2.2
Special Features: High Dynamic Range Support, CEC Compatible
Input: HDMI Type A Male
Output: HDMI Type A Female
Power: Via HDMI Source Interface
Dimensions: 24x34.3x11.8mm
Housing Material: ABS
Net Weight: 0.008kg
Operating Temperature: 0°C - 60C
Storage Temperature: -10°C - 70C
Humidity: 0 - 80% RH (non-condensing)
Colour: Black
Warranty: 2-Year
Certificated: CE, FCC, RoHS & REACH
Features:
Continuously emulates HDMI EDID information
Supports resolutions up to 3840x2160@60Hz including HDCP 2.2 pass-through and HDR
Uses cloned data or, when this is not available, stored pre-set screen resolutions/timings
Powered via HDMI Source Interface
2-Year warranty
What's in the box:
HDMI 4K EDID Emulator
Lindy Manual
38327

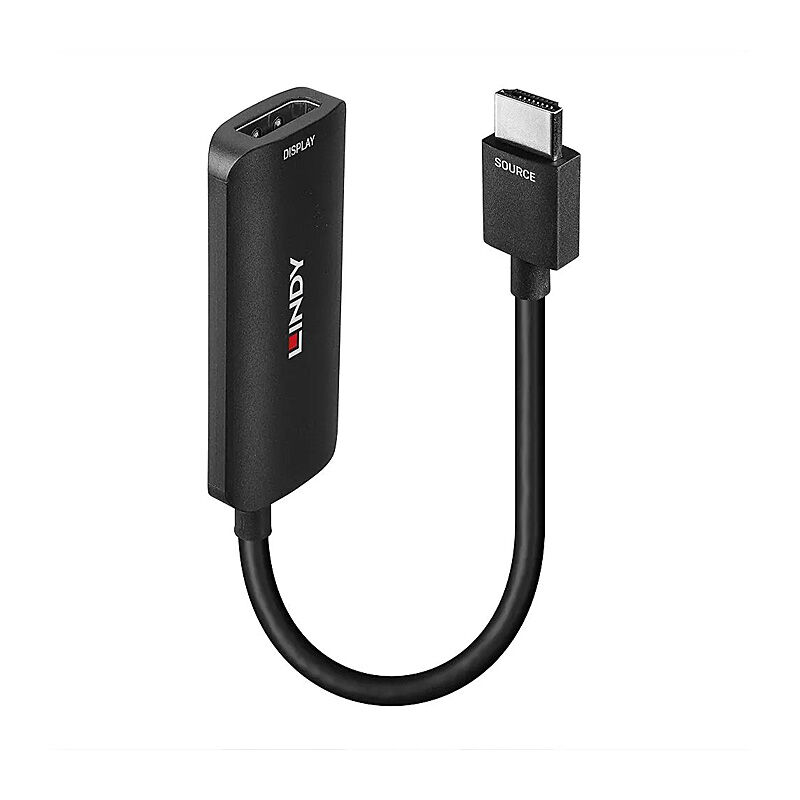

Lindy HDMI to DP Converter
$89.00
0
Brand: Lindy
Category: Cables and adapters / AV Adapters
SKU: 38327
Description: Lindy HDMI 4K60 to DisplayPort 1.2 Converter
Features
Connects an HDMI source to a DP display
Supports resolutions up to 4K UHD 3840x2160@60Hz
Enclosed USB cable for power supply
High Dynamic Range support provides deeper blacks, brighter whites and a wider colour gamut
2 year warranty
Specifications
AV Interface: HDMI to DisplayPort
Interface Standard: HDMI 2.0, DisplayPort 1.2
Supported Bandwidth: 21.6Gbps
Maximum Input Resolution: 3840×2160@60Hz 4:4:4 8Bit
Maximum Output Resolution: 3840×2160@60Hz 4:4:4 8bit
Chipset: LT6711A
HDCP Support: HDCP 2.2
Supported Audio: 96kHz/24bit
Separate Audio Ports: -
Special Features: Power via USB
Connectors
Input: HDMI Type A (Male)
Output:
DisplayPort (Female)
USB Micro-B (Female)
Physical Properties
Dimensions (approx.) WxDxH:
HDMI: 30×8×17 mm (1.18×0.31×0.67 in)
DP: 71×12×31 mm (2.8×0.47×1.22 in)
Cable Length: 157 mm (6.18 in), USB cable: 0.5 m (1.64 ft)
Housing Material: ABS
Jacket Material: PVC
Jacket Diameter: 4.8 mm (0.19 in)
Minimum Bend Radius: 25 mm (0.98 in)
Net Weight: 0.05 kg (0.11 lb)
Operating Temperature: 0°C–40°C (32°F–104°F)
Storage Temperature: -20°C–45°C (-4°F–113°F)
Humidity: 20–70% RH (non-condensing)
Colour: Black
Miscellaneous
Packaging Type: Polybag
Packaging Dimensions: 174×194×20 mm (6.85×7.64×0.79 in)
Gross Weight: 0.06 kg (0.13 lb)
Warranty (Years): 2
Product Compliance: CE, UKCA, FCC, RoHS & REACH
WT13M
MAXHUB Sharing Dongle WT13m
$295.60
1
Brand: Maxhub
Category: Cables and adapters / AV Adapters
SKU: WT13M
Description: BYOM ( to be ready soon), driver-free(type-c), NFC connect. Default 1920?1080@30Hz, Up to 3840?2160@30Hz, Maximum Startup Time: ?5s, USB Type-C and USB Type-A (adaptor)
Features
Pair with MAXHUB displays for secure content sharing without the need for network connections, ensuring internal network security
5s Rapid Pair allows for effortless mirroring
Built-in power supply module ensures meetings can seamlessly continue even when switching plugs, allowing for multi-screen sharing convenience
4K screen mirroring ensures you can deliver more professional presentations with stunning visuals, sharper text, and enhanced image textures
Enhanced Wi-Fi 6 support enables smoother video playback and document presentations with higher bitrates
Channel Spatial Multiplexing technology ensures stable, interference-free connectivity for uninterrupted screen mirroring, even in complex network environments
Touch Back control and pen annotation facilitate smoother conversations and improved interaction
Offers flexible projection modes, including mirror display, extended display, and application screen mirroring
Multi-device connectivity lets you connect up to 8 wireless screen mirroring devices at the same time
NFC One-touch Sharing helps you instantly share your screen from your mobile device by tapping it on the built-in NFC tag area
Enjoy effortless plug and play with its full-featured Type-C interface with HD output and DisplayPort protocol support
SP30
MAXHUB Smart pen
$112.20
0
Brand: Maxhub
Category: Cables and adapters / AV Adapters
SKU: SP30
Description: MAXHUB Smart pen
Specifications
Basic Specification
Recognition Principle: Passive pen
Wireless Page Turning: Supported
Pen Tip Diameter: 4.5 mm
Writing Accuracy: 3.0 mm
Remote Control Technology: BLE (Bluetooth Low Energy)
Communication Distance: ≥ 10 m
Pairing Method: BLE (Bluetooth Low Energy)
Buttons Function
Function Button: Press once for mouse left‑click; press and hold ≥ 2 seconds for virtual laser
Up/Down Button: Page up/down
Up + Down Buttons: Press simultaneously for 5 seconds to clear pairing
LED Status Indicator
Blue – Solid: Battery level ≥ 20%
Red – Solid: Battery level ≤ 20%
Blue – Flashing: Smart pen awaiting pairing
Red + Green + Blue Flashing Alternately: Factory reset
Environmental Condition
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -20°C ~ 60°C
Operating Humidity: 10% ~ 90% RH
Storage Humidity: 10% ~ 90% RH
Altitude: Below 5000 meters
Accessory (Included in the Package)
Pen Tip: × 2
Battery: AAA alkaline battery × 1
Physical Specification
Product Dimension (L × Diameter): 160 × 13 mm / 6.3 × 0.5 inch
Package Dimension (L × H × D): 185 × 60 × 22 mm / 7.28 × 2.36 × 0.87 inch
Net Weight: 17.1 g / 0.038 lbs
Gross Weight: 82.4 g / 0.182 lbs
Battery
Type: AAA battery
Battery Life: ≥ 90 days (alkaline battery)
Standby Time: 180 days
SW13
MAXHUB Stylus Spare Part
$41.20
3
Brand: Maxhub
Category: Cables and adapters / AV Adapters
SKU: SW13
Description: 2pcs in one package
Specification:
Type: Stylus
Device Compatibility: Interactive Display
Housing Material: Acrylonitrile Butadiene Styrene
Product Use: General
Pack of 2
Dimension: 200 (w) x 70 (d) x 10 (h)mm
Tip Colour: Black
Product Colour: Black
Warranty: 1 year
Features:
Dual Function - Improves Every Presentation
Dual Color | Fine Pen Nibs | Smooth Writing | Adsorption Design | Wear-resistant Design
Switch Color & Thickness - Easily with the Dual-color Pen
Customize color and thickness for both the pen head and tail. Switch to your preferred choice without hitting a button.
Every Word You Write Is Just Perfect
The fine tip's sensitive touch enhances legibility.
Smooth Strokes As Natural As Writing on Paper
The MAXHUB IR Pen has been extensively tested to ensure a flowing writing experience.
Adsorption Design Use It Anytime
Whenever inspiration strikes, effortlessly record it.
WB05
MAXHUB WB05 Screen Sharing Box
$931.70
3
Brand: Maxhub
Category: Cables and adapters / AV Adapters
SKU: WB05
Description: Android 9.0 OS, support 2.4G/5GHz dual frequency wifi, 4K UHD output, 60fps display, 6 CPU, 4GB RAM and 16GB ROM, no wireless dongles included
Specification:
Type: Screen share box
HDMI Output Resolution: 4K at 60Hz, 1080p at 60Hz
Wireless Transmission Communication Protocol: Wi-Fi
Wireless Frequency Band: 2.4 GHz, 5GHz
Wi-Fi Antenna: Built-in 2T2R
Wi-Fi working distance: 0 to 10m
Cable Network: Gigabit port
Compatible Transmitter Type: General
Operating System
System Version: Android 9.0
CPU: Cortex-A72 Dual-Core, Cortex-A53 Quad-Core
GPU: Mali-T860MP4
RAM: 4gb
ROM: 16gb
Power
Power Adapter AC Input: 100-240Vac
Power Adapter DC Output: 12 V 3 A
Power Consumption: 23.3w
Input or Output Port
USB Type-C: x1
USB3.0: x1
Audio Out: x1
HDMI Out: x1
DC2.0: x1
RJ45: x1
Environmental Conditions
Operation Temperature: 0-40degree celcius
Operation Humidity: 10-90percent RH
Storage Temperature: -20-60degree celcius
Altitude: Below 5000 meters
Physical Specifications
Dimensions: Dimension: 280 (w) x 310 (d) x 80 (h)mm
Warranty: 2years
Colour: Black
Features:
Basic performance:
HDMI output resolution: 4K@60Hz, 1080p@60Hz
Wi-Fi antenna:
Cable Network: Gigabit Port
Compatible transmitter type: General
Video encoding/decoding: Encoding: H.264/MVC/VP8; Decoding: H.264/H.265/VP9
Physical Specifications
Dimension L×H×D : 255×147×38 mm (10.04×5.79×1.50 inch)
